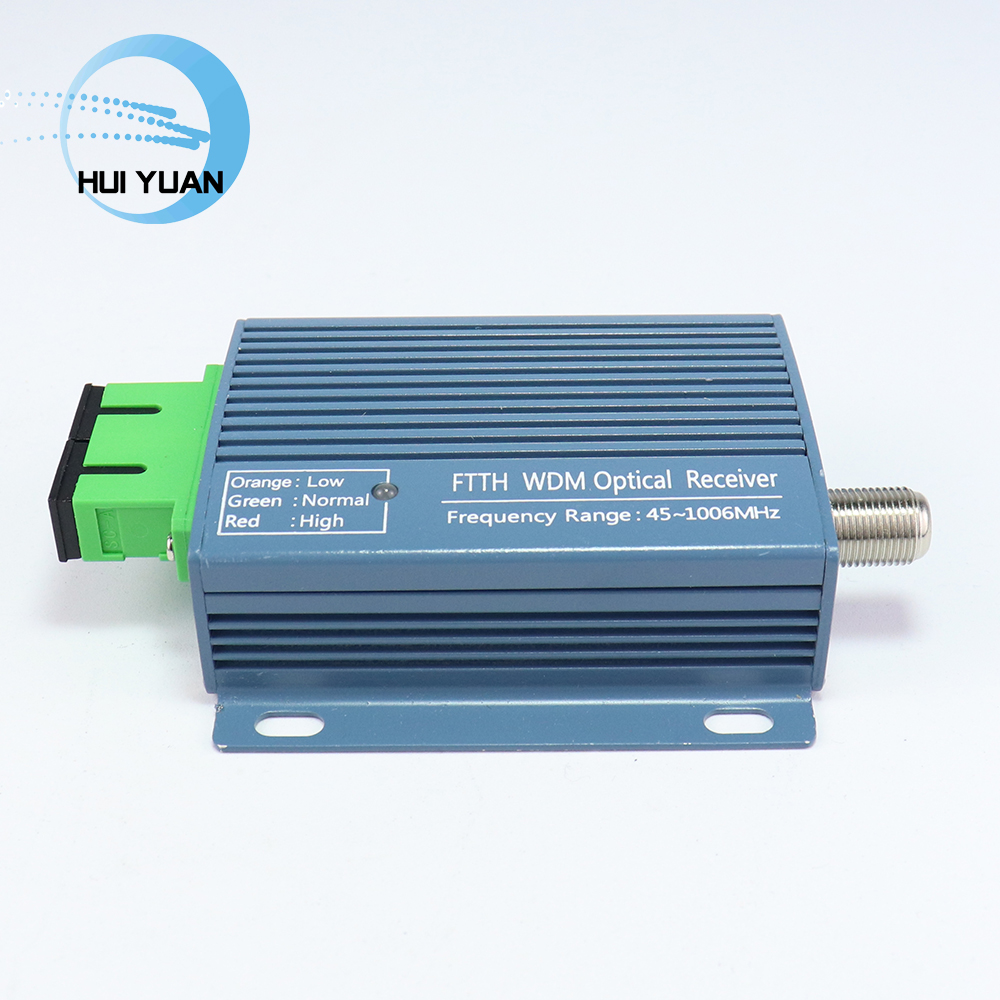

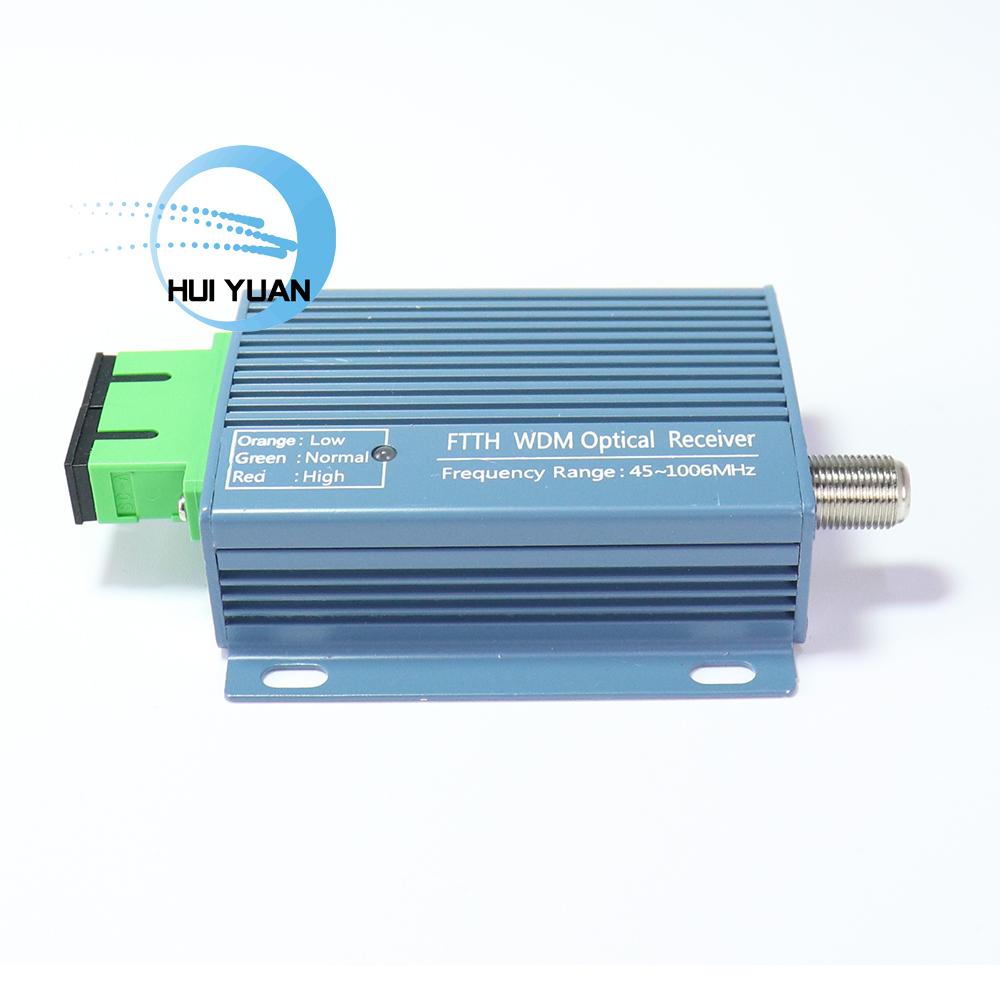

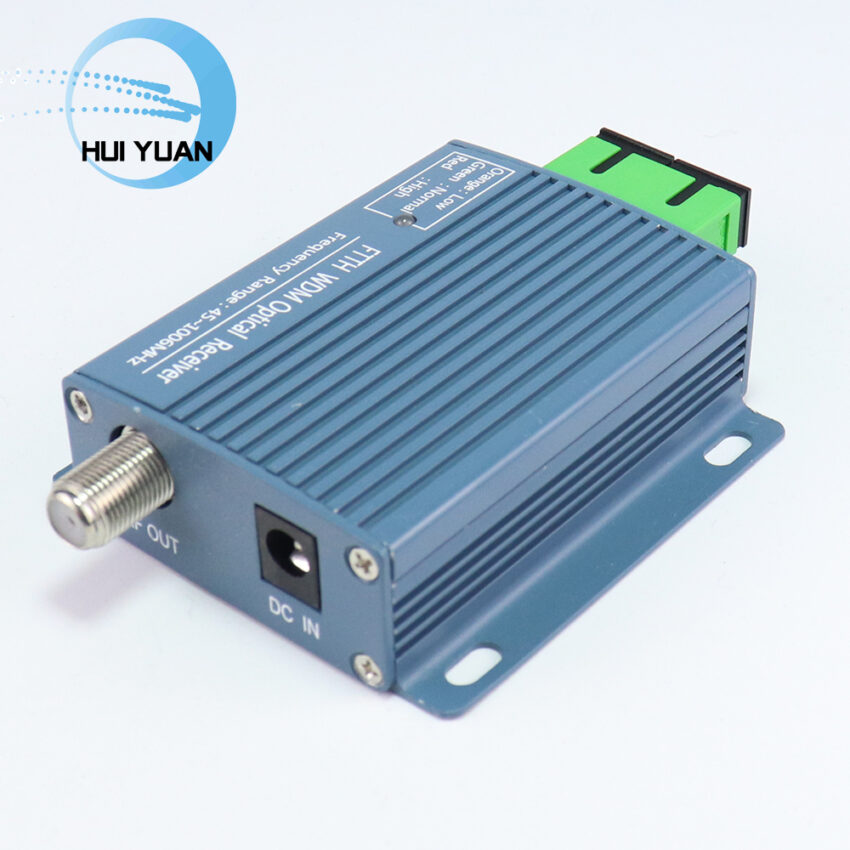

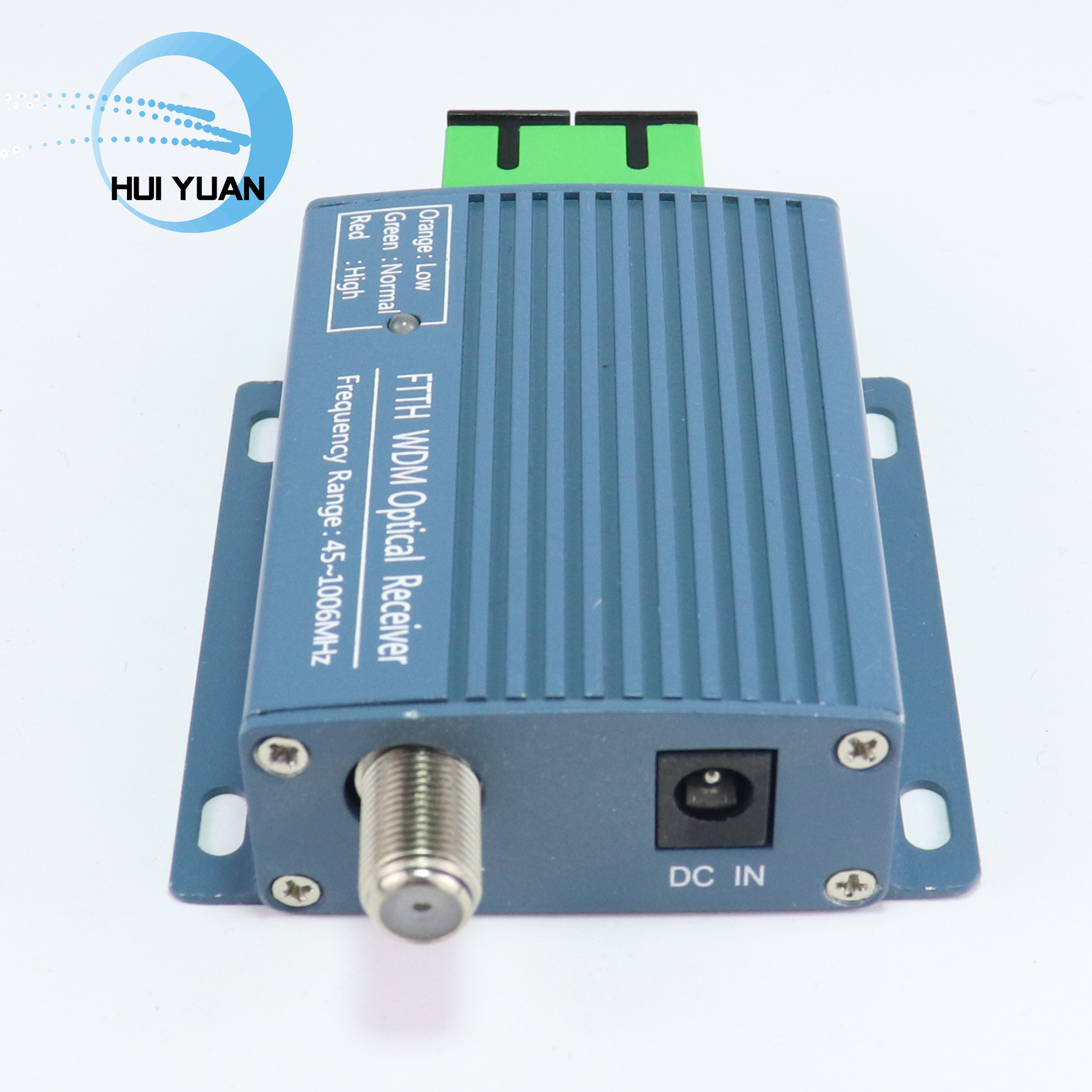

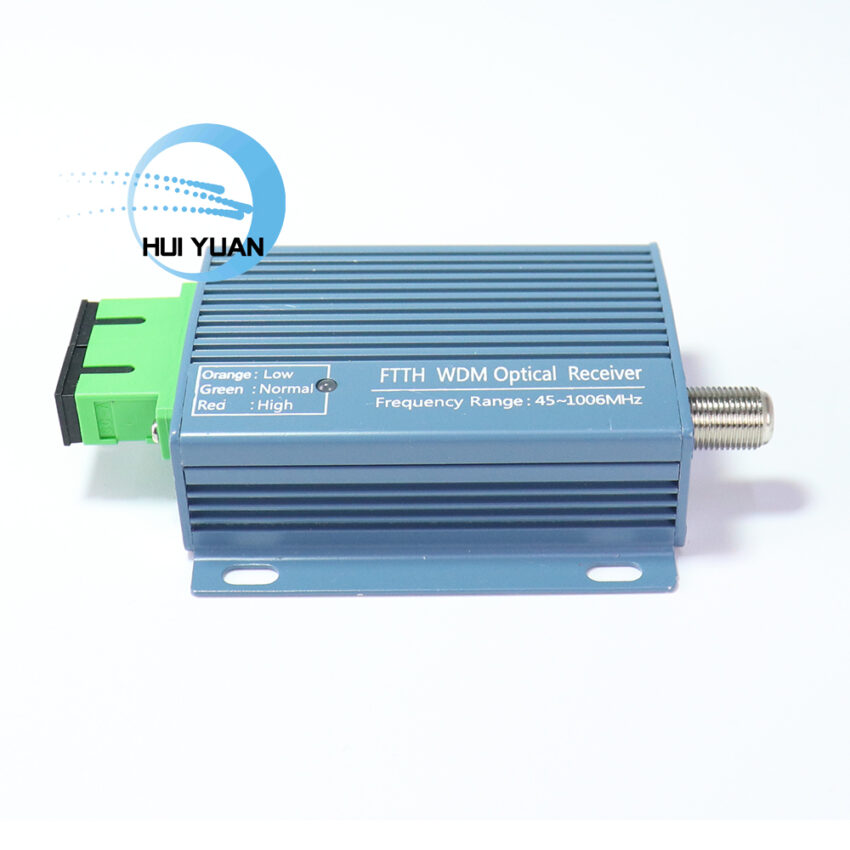

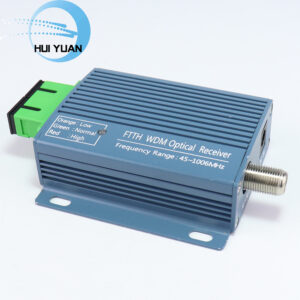

1550nm FTTH WDM Optical Receiver R36
Description:
R36 optical node is a compact in-door optical node especially designs for FTTH application. It designs with a single MMIC chip, compared with the two-stage amplifier structure, it has the characteristics of high integration, high performance, excellent anti-jamming performance. In addition, it can achieve best linearity and low noise figure with lowest power consumption by power saving sill. It also achieves digital AGC control skill by I2C interface. It provides a high-quality and high-performance FTTH network solution for cable TV operators.
Feature:
- Single MMIC chip solution;
- RF bandwidth : 45 ~ 1006 MHz;
- Output level: > 80dBuV (@AGC(-9 ~ 0 dBm) power input);
- wide optical power input range: -18 ~ +2 dBm;
- Digital AGC control and range: -9 ~ 0 dBm;
- MER: >39.2dB @>-9dBm,RFsource ≥ 80dBuV
- CNR: >57dB @>-11dBm,RFsource ≥90dBuV
Specification
Item |
Description | Value | Unit | Conditions / Notes | ||||
| Optical Specifications (Forward Path) | ||||||||
| 1 | Operating Wavelength | 1550 | nm | 1540 ~ 1560 | ||||
| 2 | PON Pass Wavelength | 1310,1490 | nm | (1260 ~ 1360), (1480 ~ 1500) | ||||
| 3 | Isolation | Pass band | ≥35 | dB | λ = 1550nm | |||
| Reflect band | ≥20 | dB | λ = 1310nm, λ = 1490nm | |||||
| 4 | Insert loss | Pass band | ≤0.8 | dB | λ = 1550nm | |||
| Reflect band | ≤0.6 | dB | λ = 1310nm, λ = 1490nm | |||||
| 5 | Optical Return Loss | ≥45 | dB | |||||
| 6 | Optical Power Input Range | -18 ~ +2 | dBm | Recommended Range: -9 ~ 0 | ||||
| AGC Range | -9 ~ 0 | dBm | ||||||
| RF Specifications (Forward Path) | ||||||||
| 7 | Bandwidth | 45 ~ 1006 | MHz | |||||
| 8 | Flatness | ±0.75 | dB | At 25 ℃ | ||||
| 9 | RF impedance | 75 | Ohm | |||||
| 10 | Output level | >80
>76 >70 |
dBuV | @AGC(-9 ~ 0), RFsource = 80 dBuV
@ -11dBm, RFsource = 80 dBuV @ -15dBm, RFsource = 80 dBuV |
||||
| 11 | Output return Loss | 16 | dB | Typical | ||||
| Analog TV Parameters | ||||||||
| Test channel | 59 | CH(PAL-D) | 535.25MHz | |||||
| 12 | OMI | 3.8 | % | |||||
| 13 | CNR① | =59
>57 >51.7 |
dB | @-9dBm,RFsource >90dBuV
@-11dBm,RFsource >90dBuV @-17dBm,RFsource >90dBuV |
||||
| 14 | CTB | ≤-65 | dB | |||||
| 15 | CSO | ≤-65 | dB | |||||
| Digital TV Parameters | ||||||||
| 16 | OMI | 4.3 | % | |||||
| 17 | MER | >39.2
>36.2 >31 |
dB | @-9dBm,RFsource = 80dBuV
@-11dBm,RFsource = 80dBuV @-17dBm,RFsource = 80dBuV |
||||
| 18 | BER | <1.0E-9 | dB | @-17dBm,RFsource = 80dBuV | ||||
| Environmental Parameters | ||||||||
| 19 | Operating Temperature | -25 ~ 85 | ℃ | |||||
| 20 | Storage Temperature | -40 ~ 85 | ℃ | |||||
| 21 | Storage Humidity | ≤95 | % | Non- condensation | ||||
| 22 | Power consume | <1 | W | |||||
| User Interface | ||||||||
| 23 | Optical Connector Type | SC/APC or SC/UPC | Optional | |||||
| 24 | Power interface | DC5V/1A | External adapter | |||||
| 25 | RF Output Connector | 1 or 2 | Optional | |||||
| 26 | Optical Power Indicator | Three color lights | Red: > 0 dBm
Green: 0 ~ -11 dBm Orange: <-11 dBm |
|||||
| 27 | Size | 100×67×23 | mm | |||||
| 28 | Weight | 0.19 | kg | |||||
