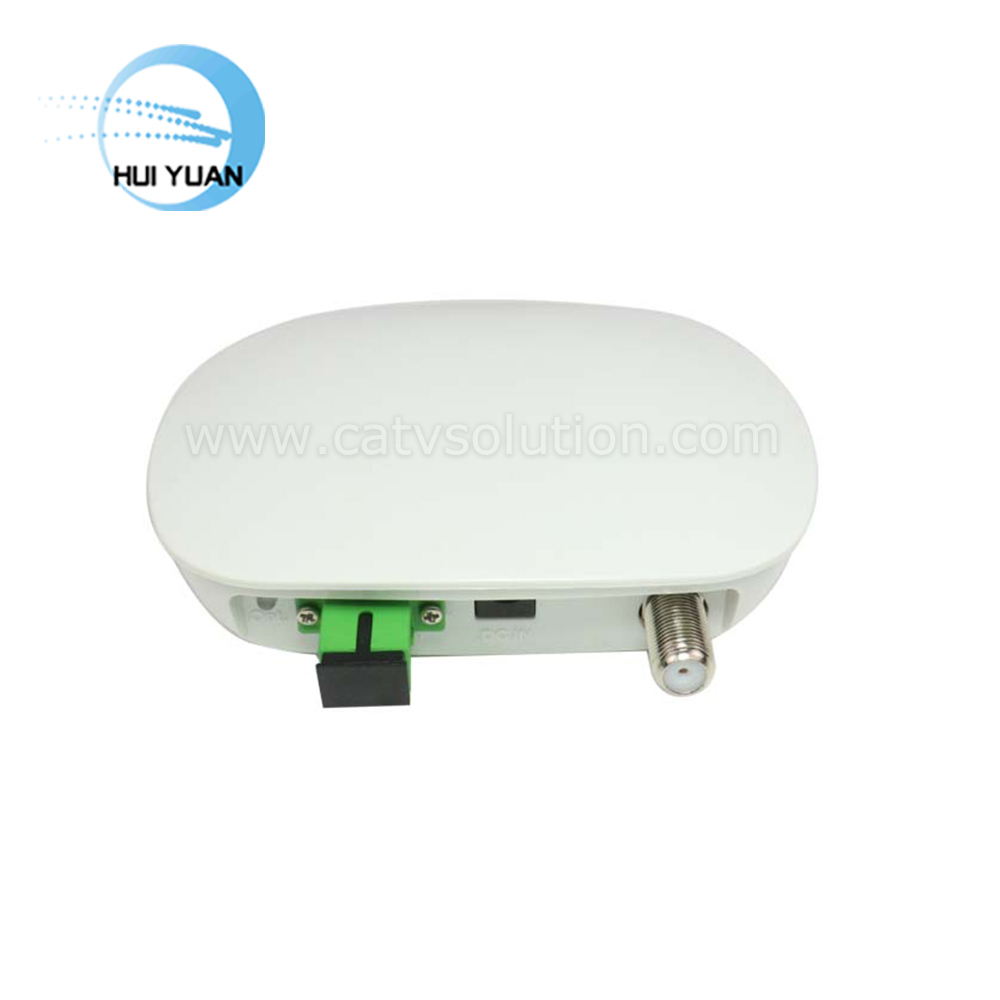

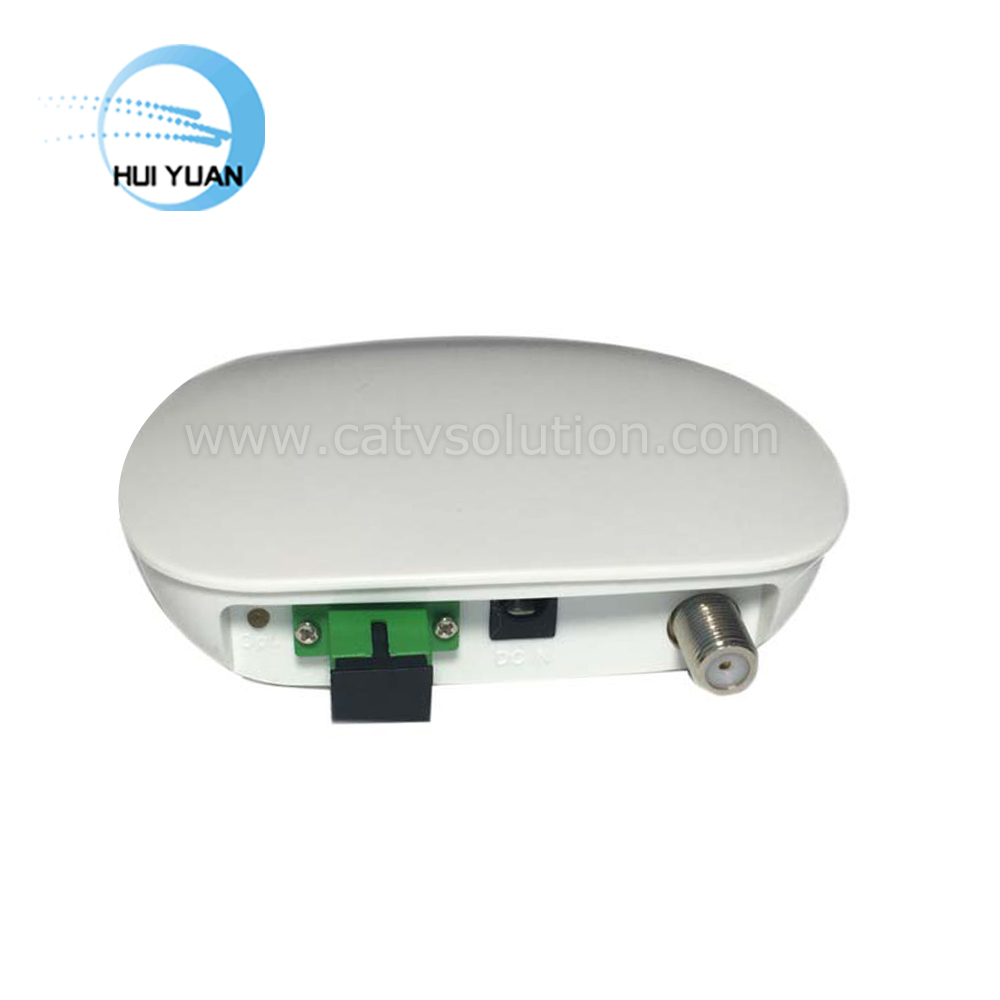

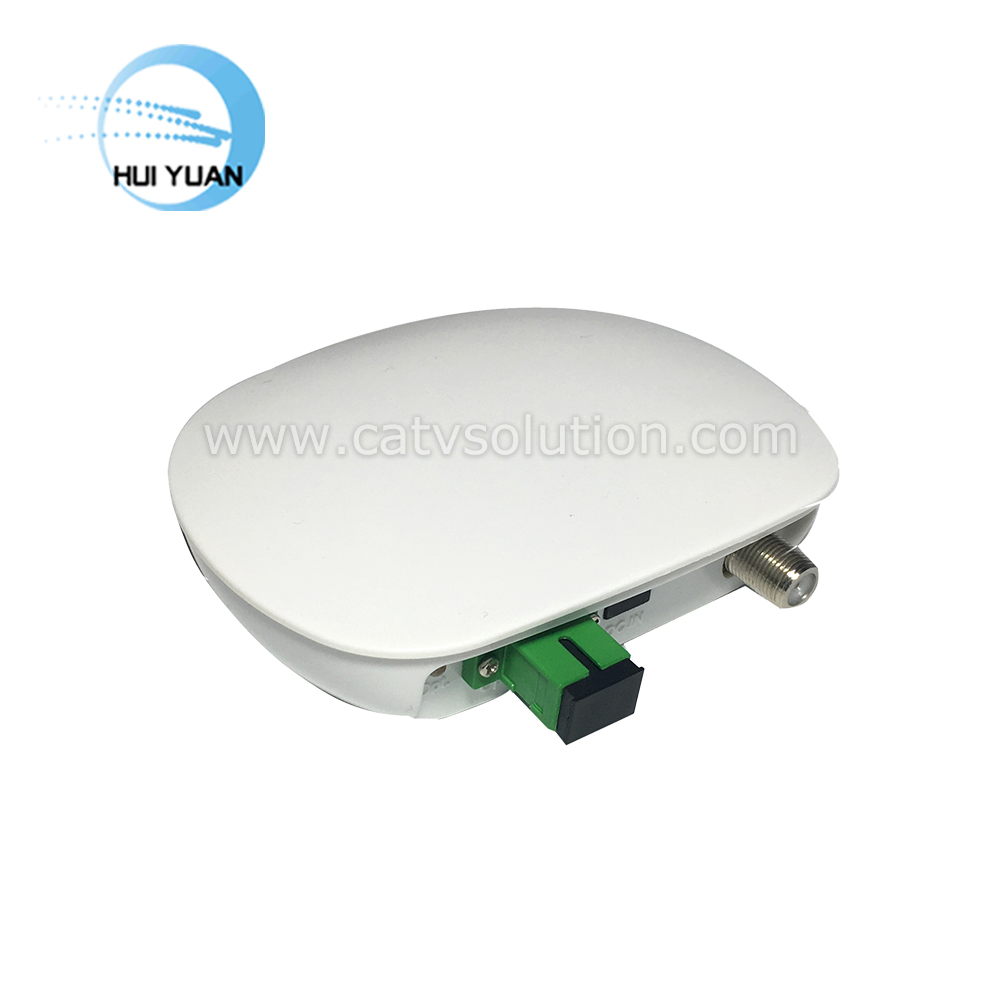

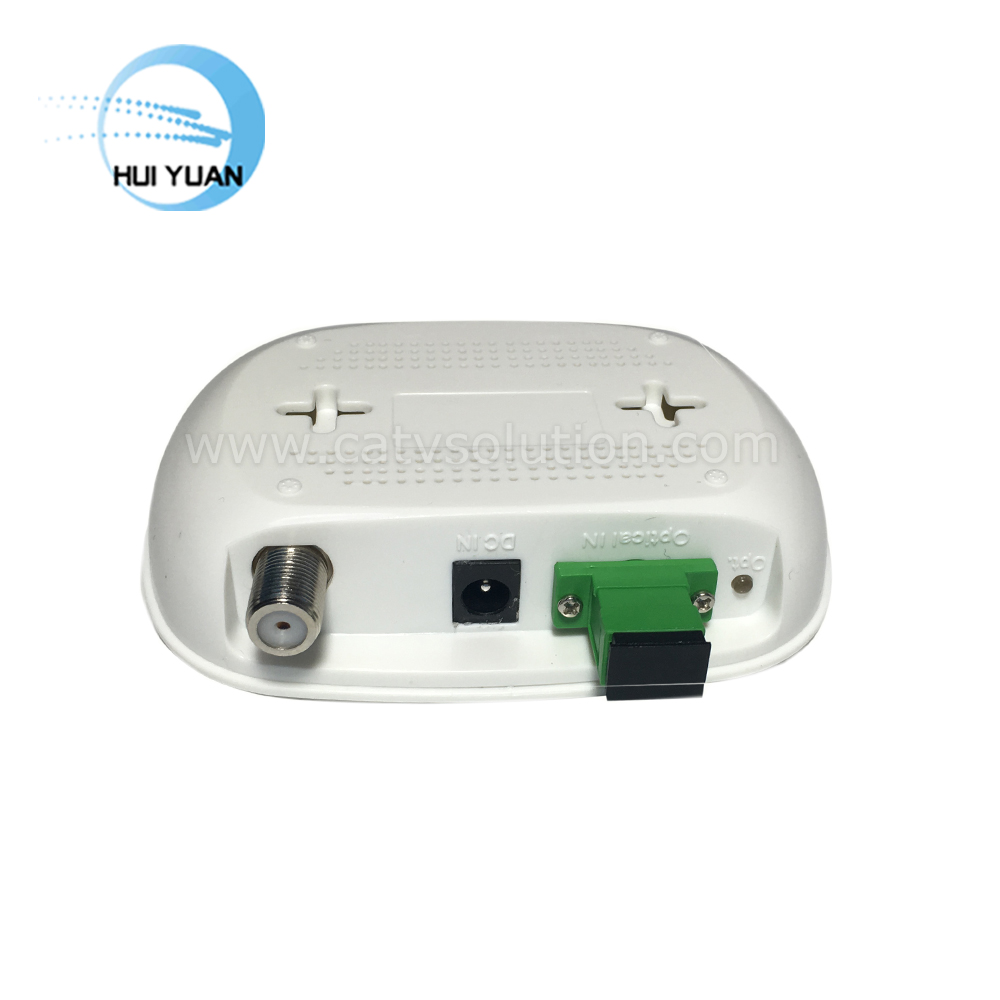

FTTH Optical Receiver With 1550nm Filte R-G81
Description:
G8x FTTH series optical receiver is a cater to the ultimate development goals of fiber access household type optical receiver, suitable for FTTH (fiber to the home) optical fiber network users access to the end, household from analog or digital signal. Can be used together with the ONU or EOC, triple play.
The machine adopts low power light detector, GaAs and electric AGC technology, can satisfy the demand of the optical fiber to the home of CATV receiving. A variety of functional products in the application, is slightly different. G81 pay attention to the cost of the product, to the user, economical application,G82 with light input -18 ~-2 DBM (AGC range can be customized), the characteristics of the output signal does not change, debugging bring convenience for the user. G81 and G82 can pretend isolator, satisfy the customer only allow 1550 nm light receiving, the rest of the light filter out.
G8x FTTH series optical receiver, installation and debugging is extremely convenient, is an ideal product to construction of FTTH cable TV network.
Product parameters:
| Products Type | G81 |
| Wavelength of Input Beam(nm) | 1310~1550 |
| Input optical power(dBm) | -18~ -2dB(-20dB, output level is 65dBmV) |
| Output Voltage level(dbmV) | ≥75 |
| Output Impedance of Radio Frequency(Ω) | 75Ω |
| Type of Optical connector: | SC/APC or SC/UPC |
| Power Consumption | 4W |
| Reflectional loss of light(dB) | >45 |
| Range of Optical AGC(dBm): | -2 ~ -12dBm |
| C/N: | ≥51dB |
| C/CSO | ≥62dB |
| C/CTB | ≥65dB |
| Range of frequencies | 40~862&1000MHZ |
| Inner flatness of band | ±0.5(45~750MHZ); ±0.75(45~862/1000MHZ) |
| Nominal output level | ≥60dBmV |
| Weight of Product(g) | 200g |
| Overall Dimension(mm) | 105×52×22mm |
| Packing list | Main products |

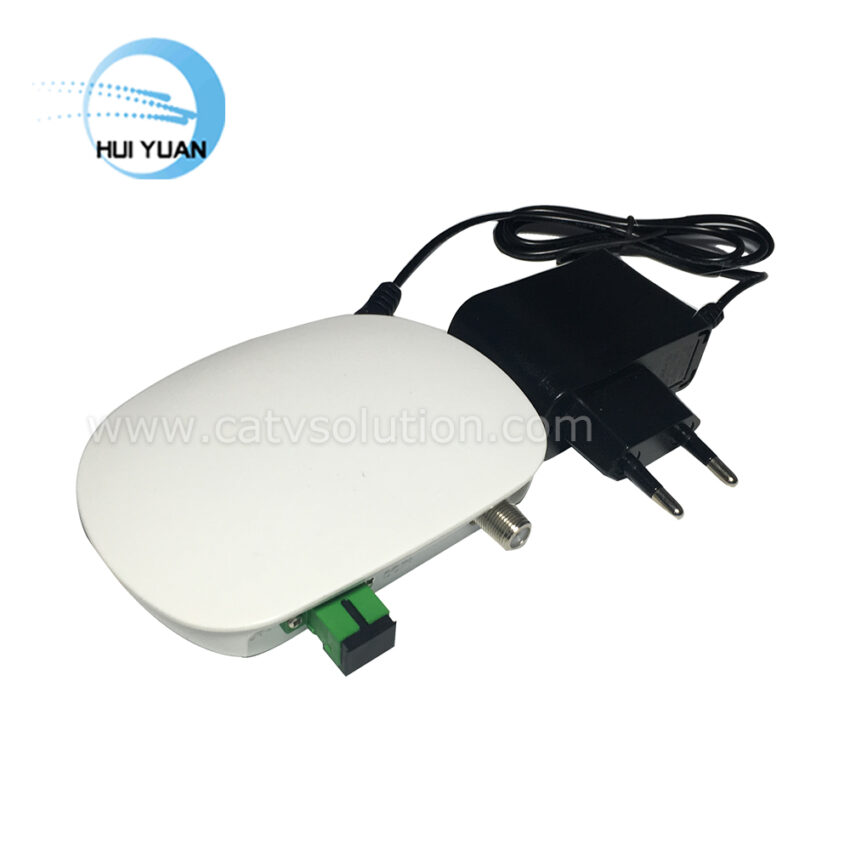

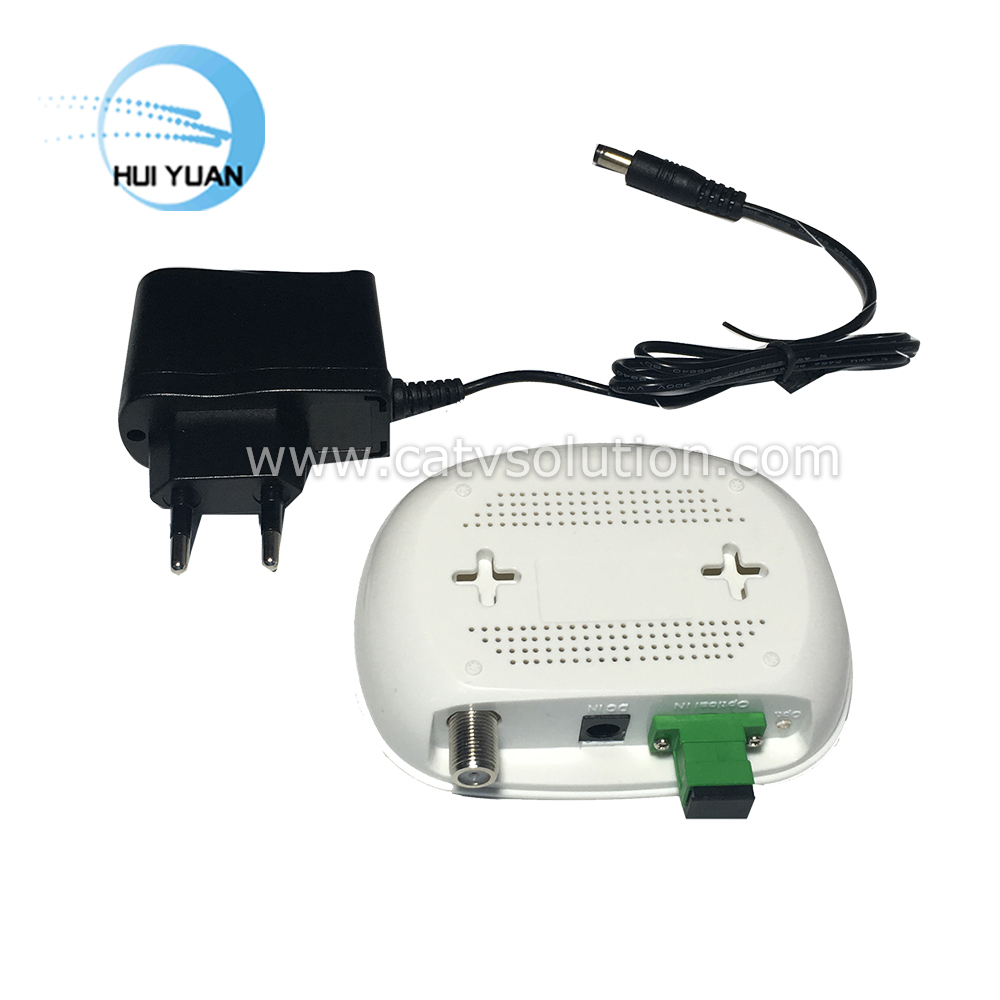

| Power adapter | |
| Instructions | |
| Warranty cards(1 Year) |
