CATV Amplifier

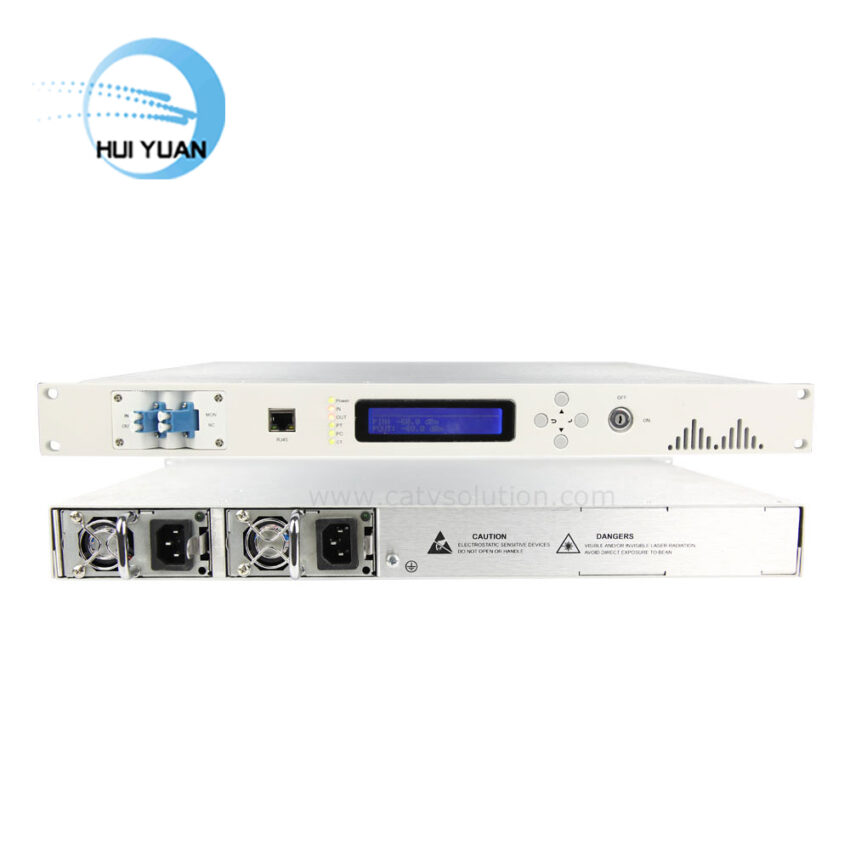

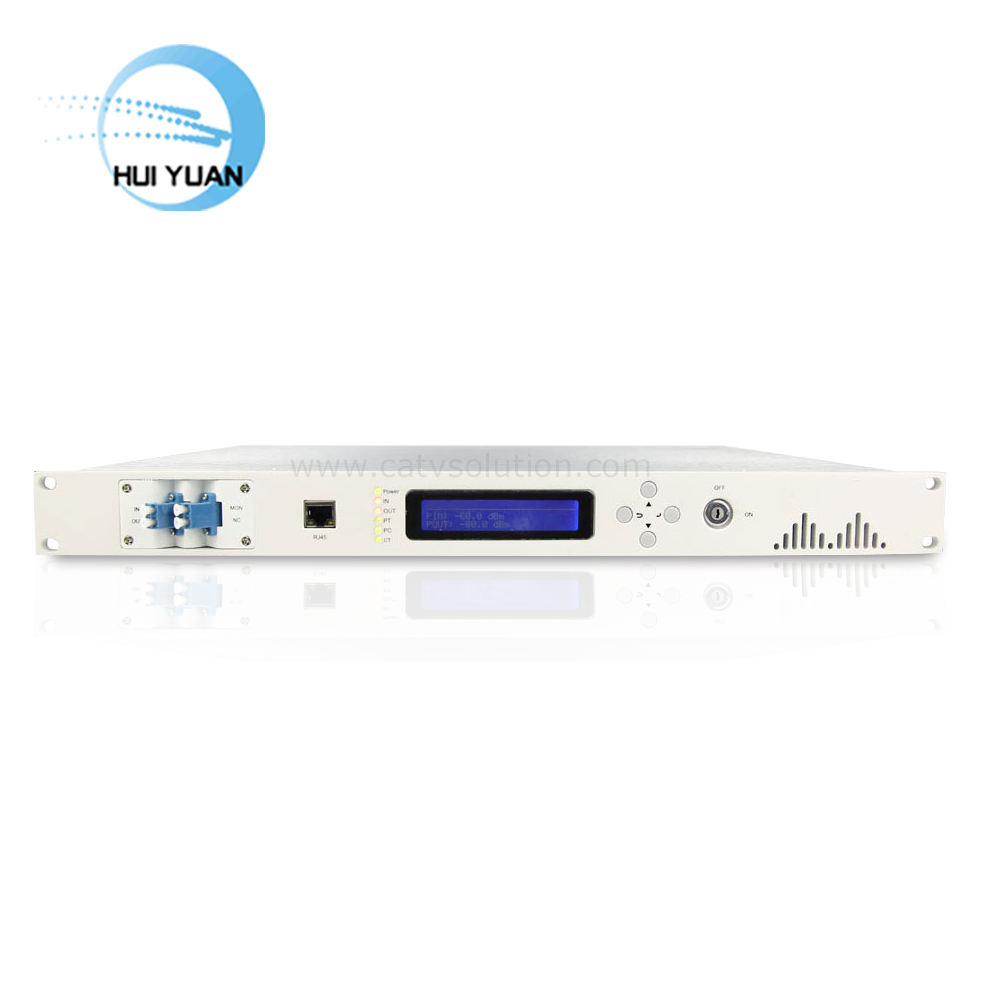

100G SOA 1310nm Amplifier 10dBm Out 1 Port Dual Power Supply

Description:

SOA can be used to 1310nm Optical amplification. It can be widely utilized in 10G/40G/100G communication system with 10dBm maximum optical power.

SOA  has built-in drive circuit and logic control circuit to monitor the key information such as input / output optical power, amplifier temperature, module temperature and signal gain in real time. The module can work in automatic optical power control (APC) or automatic gain control (AGC) mode through upper computer configuration. All state parameters and configuration information can be flexibly adjusted and monitored by the host computer master controlsoftware.

Specifications:

Parameter Unit Min Typ. Max. Note
Operating Wavelength nm 1290 1310 1330
Input Power dBm -20 +6 Can custom
Output Power dBm -1 8 Can custom
Gain dB 14 Can custom
Noise Figure dB 8
Output Power Stability dB ±0.2
Input isolation dB 40
Output isolation dB 40
PDG dB 1
Working Mode AGC/APC/ACC
Operating Temperature 0 +55 °C
Storage Temperature -40 +85 °C
Relative Humidity (non-condensation) 5 95 %
Dimensions mm 130*100*15
