32/40 Channel Athermal AWG 100G DWDM MUX/DEMUX
Description:
GH’s Athermal AWG series products take silica-on-silicon planar technology and it is built with high performance and reliability, which can be used in general DWDM systems. Based on the athermal design and packing, it is totally passive product which does not require any electrical power or temperature control. For 100G AAWG Mux/Demux, it supports up to 40-CH based on a single chipset. Customized wavelengths, package and fiber options are also available.
Feature:
- Low Insertion Loss
- Wide pass band
- High Channel Isolation
- High Stability and reliability
Application:
- WDM Network
- Telecommunication
- Access Network
Performance Specification:
| Parameter | Specification | Reference |
| Channel Number(CH) | 32,40 | |
| Channel Spacing (GHz) | 100 | |
| Center Wavelength(nm) | C-band | ITU frequency, measured in vacuum. |
| Reference Passband (GHz)/ | MAX: ±12.5 | Centered at each ITU channel frequency |
| Wavelength Stability(nm) | ±0.05 | Maximum range of the wavelength error of all channels and temperatures in average polarization. |
| -1dB Channel Bandwidth(nm) | >0.36 | Clear channel bandwidth defined by passband shape. For each Channel. |
| -3dB Channel Bandwidth(nm) | >0.51 | Clear channel bandwidth defined by passband shape. For each Channel. |
| Insertion Loss (including connector loss) (dB) | <5.0 | Defined as the minimum transmission at ITU wavelength for all channels. For each channel, at all temperatures and polarizations with connectors. |
| Uniformity (dB) | <1.0 | The difference between the maximum and
minimum of passband across all channels |
| Adjacent Channel Isolation (dB) | >25 | Ratio of peak transmission to the maximum transmission over both adjacent ITU wavelengths |
| Non-Adjacent Channel Isolation (dB) | >30 | Ratio of peak transmission in channel
passband to the maximum transmission over all non-adjacent ITU wavelength |
| Total Channel Isolator (dB) | >20 | Ratio of power in channel to power in all other ITU wavelength |
| PDL (dB) | <0.5 | Worst-case value measured in ± 20GHz around ITU wavelength for each port. |
| Return Loss (dB) | >40 | Input & output ports |
| CD (ps/nm) | -20～+20 | Maximum change rate of group delay versus wavelength within reference ITU wavelength |
| PMD (ps) | <0.5 | Maximum differential group delay within reference ITU wavelength |
| Directivity
|
>40 | Ratio of reflected power out of any channel(other
than channel n)to power in from the input channel |
| Maximum Input Optical Power(Mw) | 500 | Maximum continuous optical power |
| Ripple(dB) | <0.5 | |
| Operating Temperature (℃) | -20～70 | |
| Storage Temperature (℃) | -40～85 | |
| Connector Type | Customer Specify | |
| Fiber Type | SM-28e | |
| Package dimension (mm) (ABS box) | L100 x W80 x H10 | |

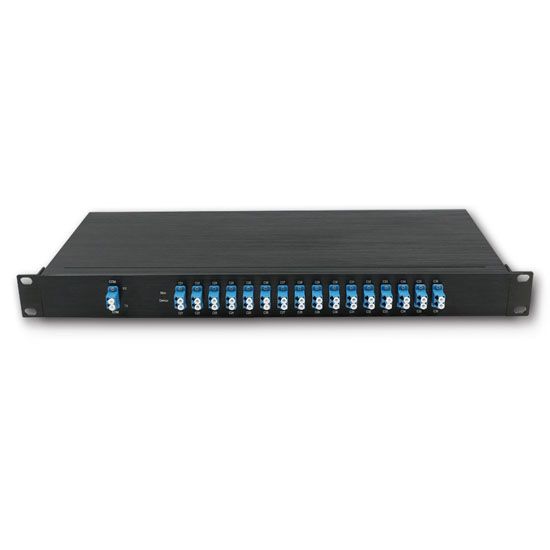

| Package dimension (mm) (19” 1U Rackmount) | L440 x W200 x H44 | |
