1 fiber 7 rj45 port switch1SFP 7rj
1 fiber 7 rj45 port switch
Multi-port Fiber Fast Switch

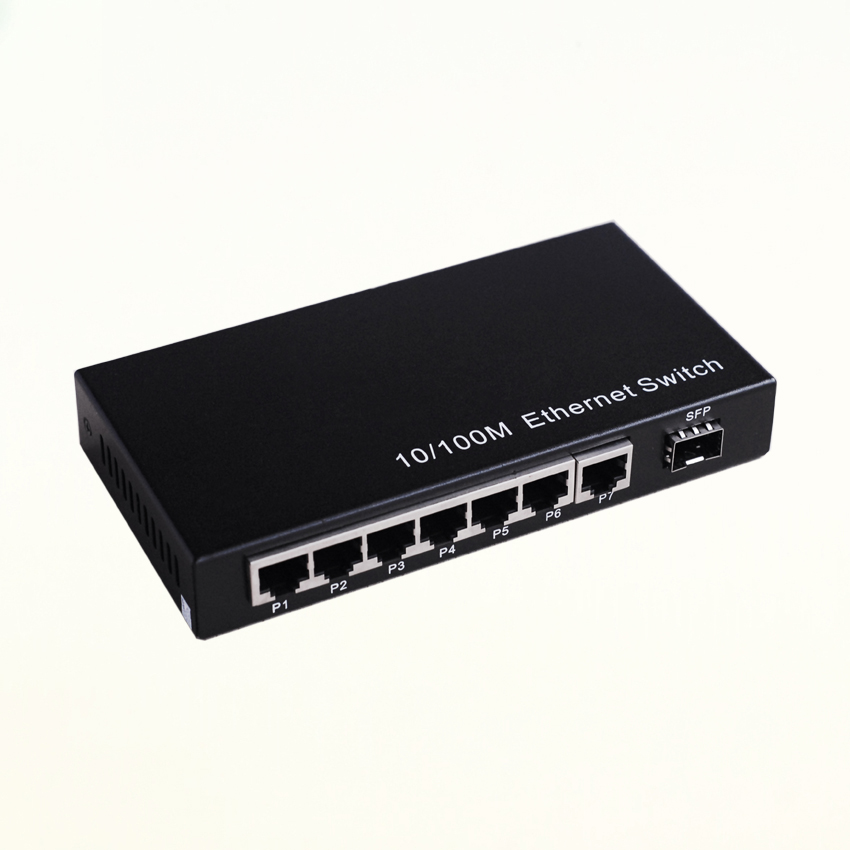

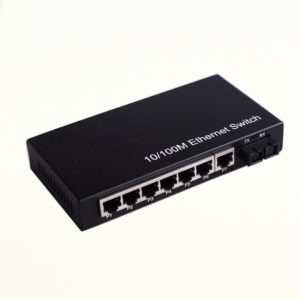

8 Port 100M Fast Ethernet Switch 7 RJ45 1 Fiber

HY-11-SF0808 Fast Ethernet Switch complies with IEEE802.3, 10Base-T and IEEE802.3u, 100Base-FX. There are 7 10/100Mbps auto-negotiable UTP ports and 1 FIBER port in the switch.
Every UTP ports of HY-11-SF0808 Fast Ethernet Switch can auto-negotiate the speed (10/100Mbps), the data transmission duplex way (Full duplex/half duplex), and the auto crossover of RJ45 port (MDI / MDI-X).
HY-11-SF0808 is an excellent all-purposed Optical Fiber Switch with work group, it can be used as switch equipment in small network.
  • General Specification
   Operating standards:  IEEE802.3 10Base-T Ethernet
                     IEEE802.3u 100Base-TX and 100Base-FX Fast Ethernet
                     ANSI/IEEE STD 802.3 10/100M auto-negotiated
   Protocol: CSMA/CD
   Data Transmitting Rate: Ethernet: 10Mbps (Half Duplex)
20Mbps (Full Duplex)
Fast Ethernet: 100Mbps (Half Duplex)
         200Mbps (Full Duplex)
   Cable: UTP or STP, CAT. 5 or CAT. 6, the max distance up to 100m
   Fiber: (multimode):  50/125, 62.5/125μm (the max distance up to 2km)
Fiber (singlemode):  8.3/125, 8.7/125, 9/125, 10/125μm (the max distance up to 20-120km)
Connector: Seven RJ-45, 10/100Mbps auto-negotiable ports; one FIBER ports
Duplex choose: every RJ45 port N-WAY auto-choose Full/Half Duplex
LED indicators: POWER, 100M, Link/Act,
Flow control:
Full Duplex: IEEE802.3x flow control;
Half Duplex: bake pressure flow control
MAC address table: 1K
