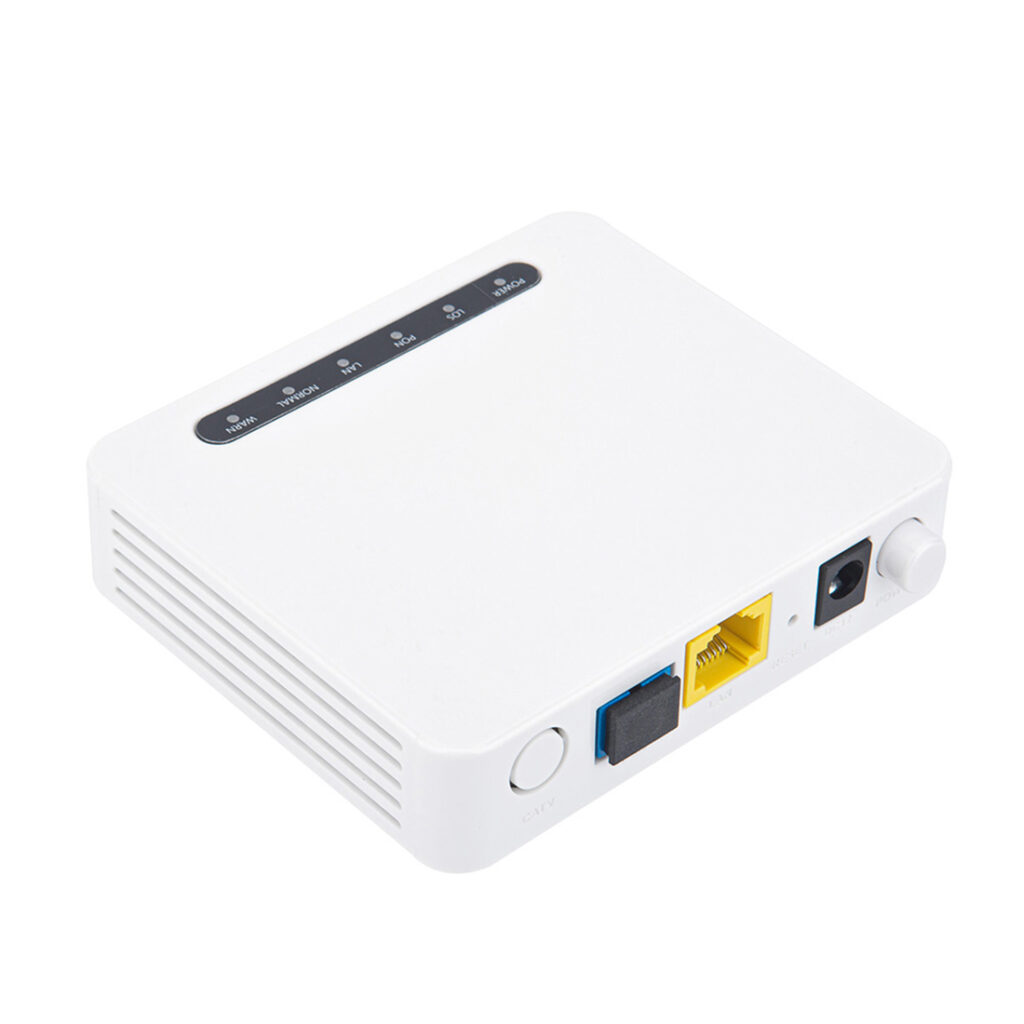

xPON ONU 1GE HY-15-XO1G
Description
XPON ONU supports dual modes, and can automatically switch between EPON or GPON mode when connected to EPON OLT or GPON OLT. XPON ONU meets the SFU and HGU of China Telecom EPON CTC 3.0 standard. support XPON environment, OMCI control, OAM, multi-brand OLT management, TR069, TR369, TR098、NAT, firewall functions. And it has the characteristics of high reliability, convenient management, flexible configuration, quality of service (Qos) new network environment application and smart home furniture gateway. The products sold by our company are guaranteed for 1-3 years from the date of sale, and the software can be upgraded for free for life.
Overview
- 1GE ONU is designed as HGU (Home Gateway Unit) in different FTTH solutions; the carrier-class FTTH application provides data service access.
- 1GE ONU is based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT.
- 1GE ONU adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China telecommunication EPON CTC3.0.
- 1GE ONU is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.
- 1GE ONU is designed by Realtek chipset 9601D
.Feature
- Supports Dual Mode (can access GPON/EPON OLT).
- Supports SFU and HGU of EPON CTC 3.0 standard
- Supports GPON G.984/G.988 standards and IEEE802.3ah.
- Support NAT, Firewall function.
- Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect
- Support port mode of vlan configuration
- Support LAN IP and DHCP Server configuration
- Support TR069 Remote Configuration and maintenance
- Support Route PPPOE/DHCP/Static IP and Bridge mixed mode
- Support IPv4/IPv6 dual stack
- Support IGMPv2, IGMPv3, MLDv1, MLDv2, IGMP snooping/proxy
- Compatible with popular OLT(HW, ZTE, FiberHome,)
Specification:
| Technical Item | Details |
| PON interface | 1 GPON/EPON port(EPON PX20+ and GPON Class B+)
Upstream: 1310nm,Downstream: 1490nm SC/UPC connector Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM |
| LAN interface | 10/100/1000Mbps auto adaptive Ethernet interfaces.
10/100/1000M Full/Half, RJ45 connector |
| LED | 4 LED, For Status of POWER、LOS、PON、LAN |
| Push-Button | 2, for Function of Power on/off, Reset |
| Operating condition | Temperature : 0℃～+50℃
Humidity :10%～90%（non-condensing） |
| Storing Condition | Temperature : -40℃～+60℃
Humidity :10%～90%（non-condensing） |
| Power supply | DC 12V/1A |
| Power Consumption | <3W |
| Net Weight | <0.2kg |
Panel lights and Introduction
| Pilot | Status | Description |
| POWER | On | The device is powered up. |
| Off | The device is powered down. | |
| LOS | Blink | The device doses not receive optical signals. |
| Off | The device has received optical signal. | |
| PON | On | The device has registered to the PON system. |
| Blink | The device is registering the PON system. | |
| Off | The device registration is incorrect. | |
| LAN | On | Port is connected properly (LINK). |
| Blink | Port is sending or/and receiving data (ACT). | |
| Off | Port connection exception or not connected. |
