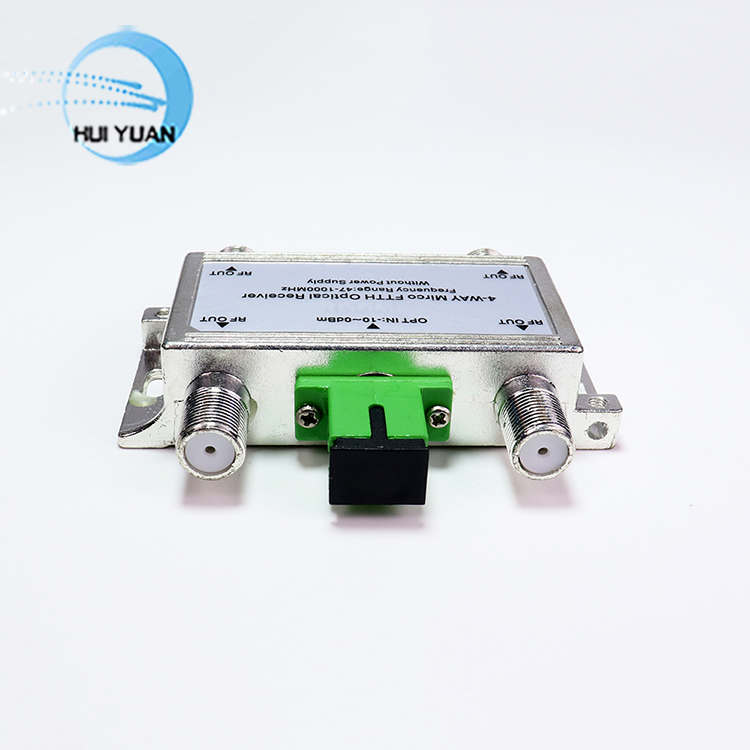

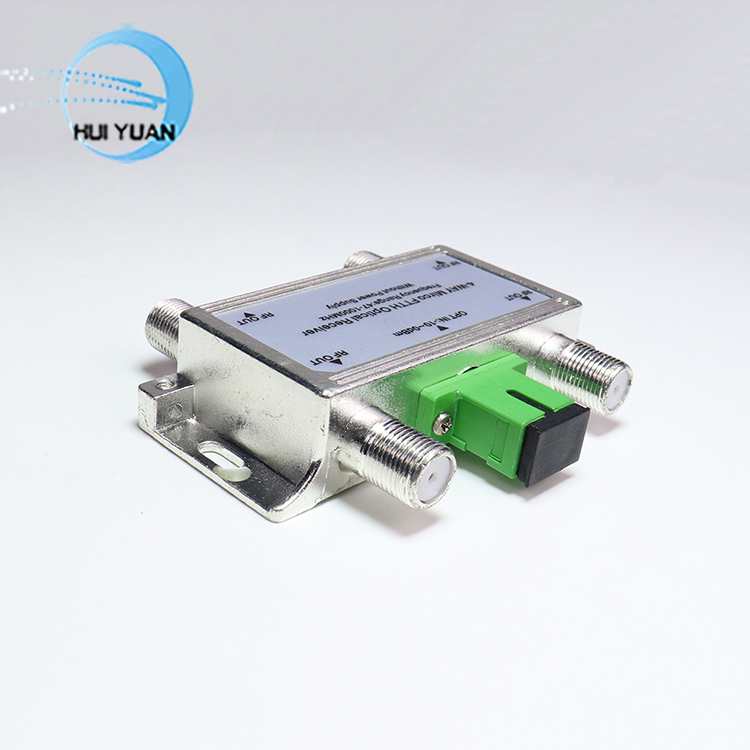

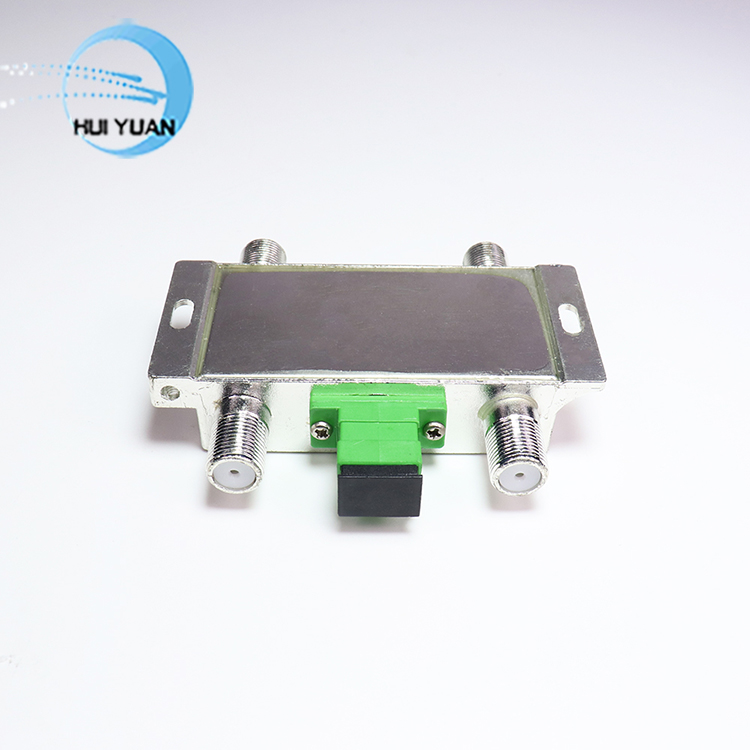

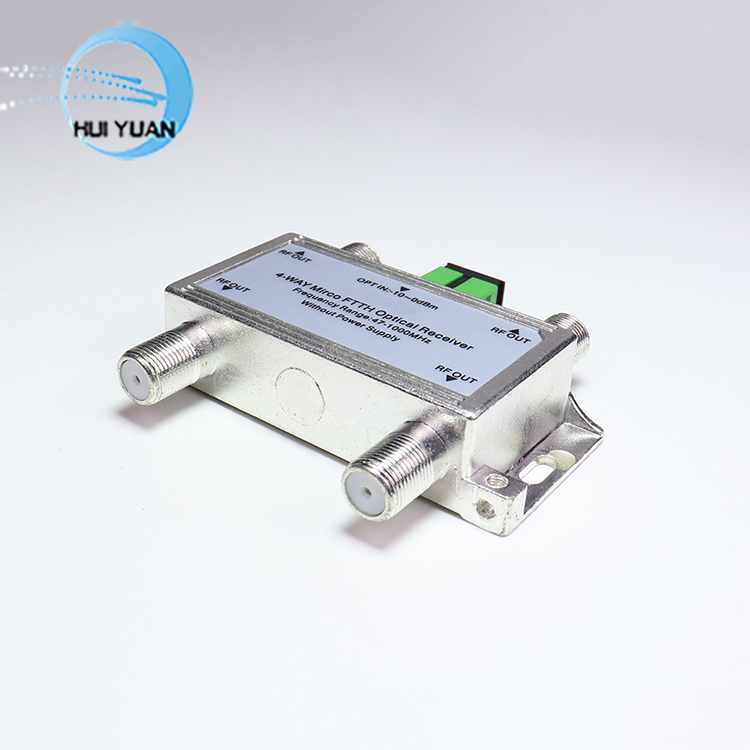

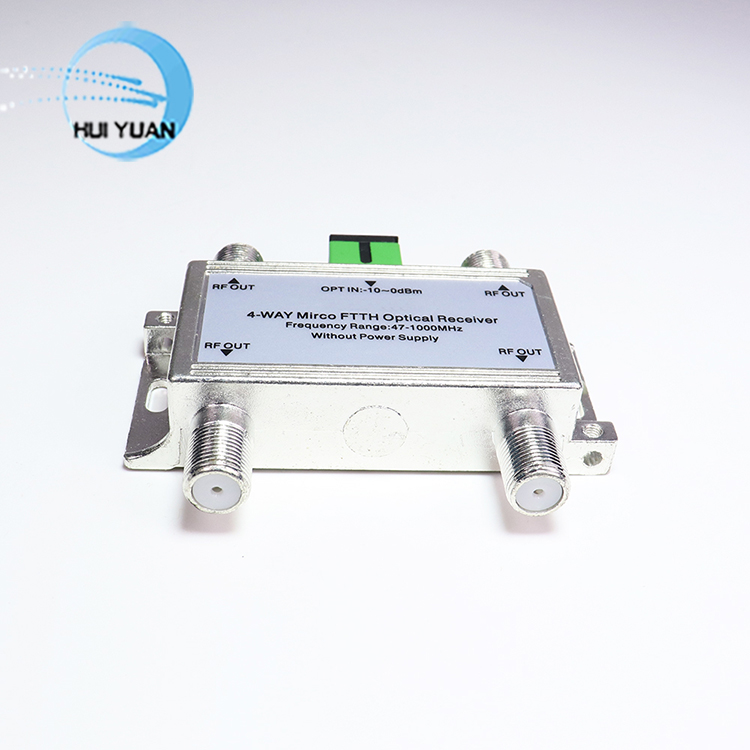

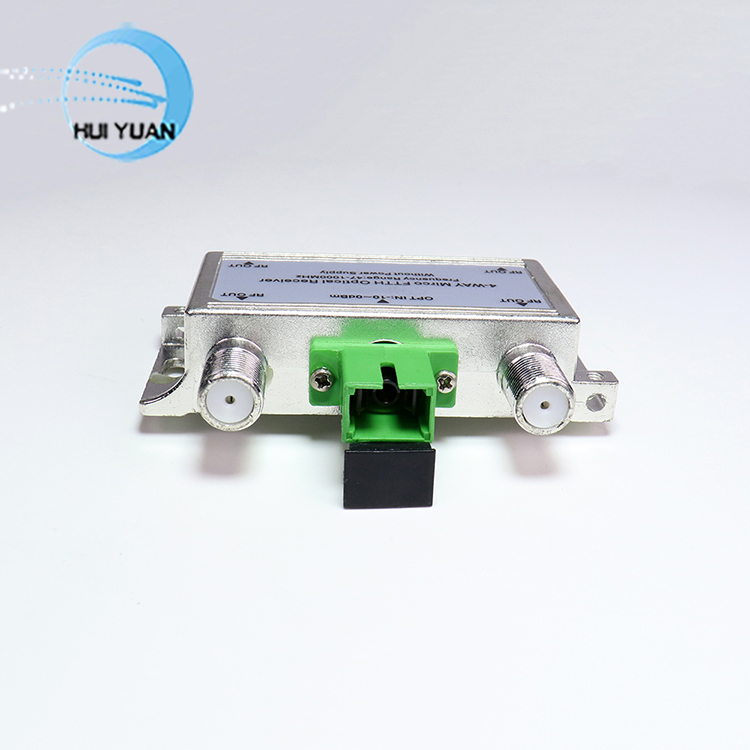

Passive FTTH Optical Receiver 4 RF Port R13
Description:
R13 series CATV converter for digital television,fiber to the home. This machine adopts the high sensitivity optical receiving tube,without power supply,no power consumption.When the input optical power output level Pin=-1dBm, Vo=68dBuV, can be economically and flexibly apply the integration of three networks,fiber to the home network application.
Product parameters:
| Products Type | HY-21-R13/HY-21-R13F |
| Wavelength of Input Beam(nm) | 1100~1650/1550nm |
| Input optical power(dBm) | -12~ 0dBm |
| Output Impedance of Radio Frequency(Ω) | 75Ω |
| Type of Optical connector: | SC/APC or SC/UPC |
| Reflectional loss of light(dB) | >45 |
| C/N: | ≥51dB |
| C/CSO | ≥62dB |
| C/CTB | ≥65dB |
| Range of frequencies | 45~1000MHZ |
| Inner flatness of band | ±1.5dB |
| Output Return of Radio Frequency: | ≥16dB |
| Weight of Product(g) | 69g |
| Overall Dimension(mm) | 78×70×20mm |
| Packing list | Main products |
| Instructions | |
| Warranty cards(1 Year) |
