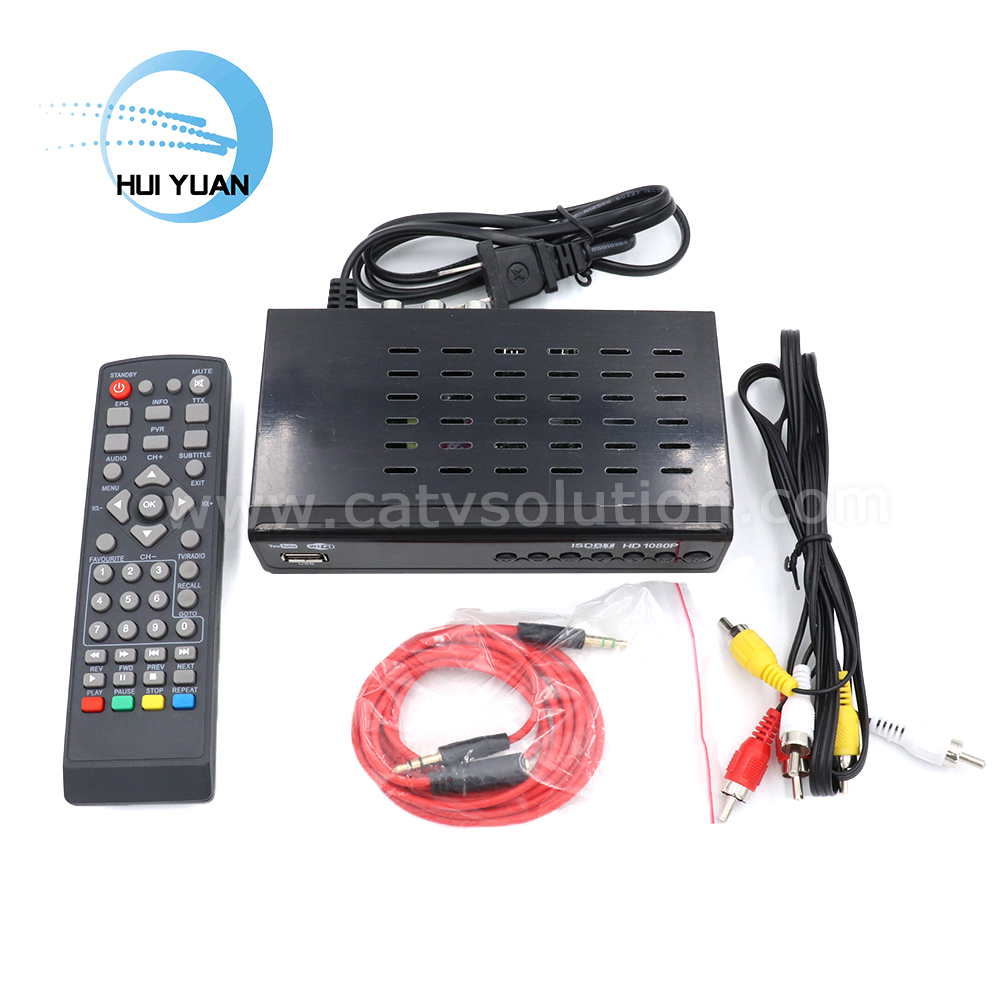

Set Top Box ISDB-T
Description
ISDB-T digital TV standard, mainly for all countries in South America,
Mainly by receiving terrestrial digital TV signals, and then receiving television programs through the display.
Specification
| Item | S01 |
| CPU | AVL1508C |
| Memory | 32X16Mbit DDR2 Frequency1066 |
| Flash | 32M bytes |
| Demodulator Type | ISDB SOC Chip Set |
| TUNER | SI2141 |
| Front Panel | Panel KEY:POWER,CH- ,CH+, MENU |
| USB 2.0 Embedded One Host, | |
| Rear Panel | Tuner RF input connector EC-type IEC169-2 Female |
| HDMI V1.3/V1.4 x1 | |
| RCA CVBS AL AR Connector x1 | |
| DC x 1 | |
| Demodulation | Power AC100~240V 50Hz/60Hz |
| Terrestrial Receiver Standard ISDB-T broadcast (1, 3, 13 segment) | |
| Input RF Frequency ：47MHz-860MHz | |
| Bandwidth 6MHz | |
| FEC 1/ 2, 2/3, 3/4, 5/6, 7/8 Automatic | |
| Guard Interval 1/4，1/8，1/16，1/32 | |
| FFT Mode 2K/ 8K/32K | |
| Input level -83 – -5dBm | |
| Sortware Features | used for any ISDB-T countries like Brazil, Peru, Argentina,Chile,Venezuela,PhilippinesEcuador |
| Supports all ISDB-T broadcast (1, 3, 13 segment), MPEG-2/MPEG-4 AVC/H.264 HD/SD Video , DiVX compliant | |
| Support 3D interface | |
| Support teletext/subtitle/muti-language | |
| Supported 7-Day EPG function, VBI Teletext | |
| AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Screen | |
| USB 2.0 for PVR,TIMESHIFT,software upgrade and media files playback | |
| Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P | |
| Video Decoder | Compliant with: MPEG-4 part10/MPEG-2 ISO/IEC 13818 |
| MPEG-4 Simple/Main/Advanced Profile@LEVEL3(10Mbps) | |
| MPEG-2 Main Profile# Main Level(15Mbps) | |
| H.264 MP#L3(10Mbps).H.264 HP L4.1(25Mbps) | |
| Audio Decoder | MPEG-1, MPEG-2 (Layer I/II), MP3, AC-3 (Dolby Digital), AAC-LC, WMA |
| Media Codec | avi. mpg, .dat, .vob, .div, .mov, .mkv, .jpeg, .ts etc |
| Audio Codec | WMA,MP3,AAC (.wma,.mp3,m4a) |
| Photo Codec | JPEG, BMP, PNG |
| Machine Size | 168*93*35.4MM |
