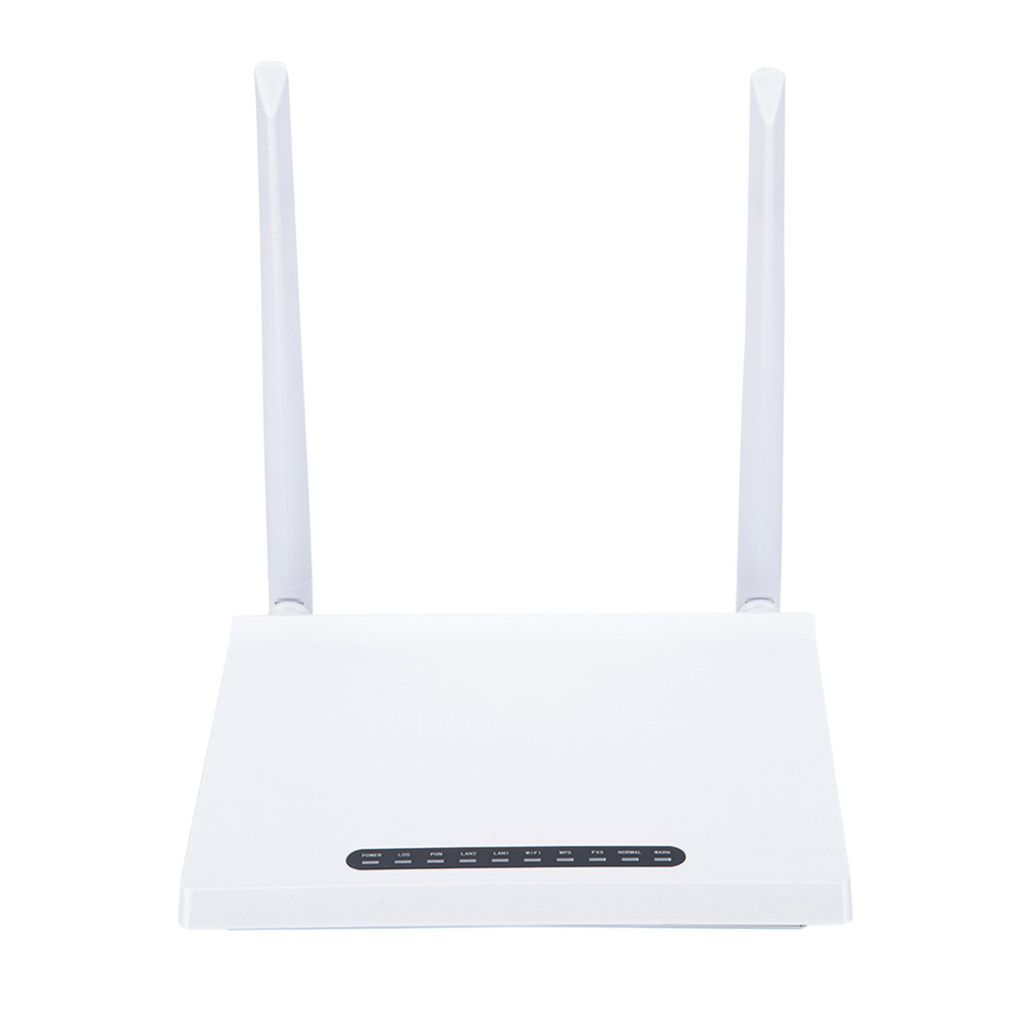

HY-15-XO1G1F1CAWHY-15-XO1G1F1CAWHY-15-XO1G1F1CAW.
HY-15-XO1G1F1CAW
ONU/ONT

XPON ONU 1GE+1FE+CATV+WIFI HY-15-XO1G1F1CAW

Description

  • 1G1F+WIFI+CATV is designed as HGU (Home Gateway Unit) in transfer data FTTH solutions; the carrier-class FTTH application provides data service access.
  • 1G1F+WIFI+CATV is based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT.
  • 1G1F+WIFI+CATV adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China telecommunications EPON CTC3.0.
  • 1G1F+WIFI+CATV is compliant with IEEE802.11n STD, adopts with 2×2 MIMO, the highest rate up to 300Mbps.
  • 1G1F+WIFI+CATV is full compliant with technical  regulations such as ITU-T G.984.x and IEEE802.3ah.
  • 1G1F+WIFI+CATV is designed by Realtek chipset 9602C.

 Feature

  •  Supports Dual Mode (can access GPON/EPON OLT).
  •  Supports GPON G.984/G.988 standards
  • Support CATV interface for Video Service and remote control by Major OLT
  •  Support 802.11n WIFI (2×2 MIMO) function
  •  Support NAT, Firewall function.
  •  Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect
  •  Support port mode of VLAN configuration
  •  Support LAN IP and DHCP Server configuration
  •  Support TR069 Remote Configuration and WEB Management
  •  Support Route PPPOE/IPOE/DHCP/Static IP and Bridge mixed mode
  •  Support IPv4/IPv6 dual stack
  •  Support IGMP transparent/snooping/proxy
  •  In compliant with IEEE802.3ah standard
  •  Compatible with popular OLT (HW, ZTE, FiberHome,VSOL…)

Specification:

Technical Item



 Details
PON interface



 1 G/EPON port(EPON PX20+ and GPON Class B+)

Upstream: 1310nm; Downstream: 1490nm

SC/UPC connector

Receiving sensitivity: ≤-27dBm

Transmitting optical power: 0~+4dBm

Transmission distance: 20KM
LAN interface 1×10/100/1000Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
WIFI Interface Compliant with IEEE802.11b/g/n

Operating frequency: 2.400-2.4835GHz

support MIMO, rate up to 300Mbps

2T2R,2 external antenna 5dBi

Support: Multiple SSID

Channel:13

Modulation type: DSSS、CCK and OFDM

Encoding scheme: BPSK、QPSK、16QAM and 64QAM
CATV Interface RF, optical power : +2~-15dBm

Optical reflection loss: ≥45dB

Optical receiving wavelength: 1550±10nm

RF frequency range: 47~1000MHz,  RF output impedance: 75Ω

RF output level: ≥ 80dBuV（-7dBm optical input）

AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm

MER: ≥32dB(-14dBm optical input), ＞35(-10dBm)


LED 7 LED, For Status of POWER, LOS, PON, LAN1~LAN2, WIFI, WPS
Push-Button 4, for Function of Power on/off, Reset, WPS, WIFI
Operating condition Temperature : 0℃～+55℃

Humidity :10%～90%（non-condensing）
Storing Condition Temperature : -40℃～+60℃

Humidity :10%～90%（non-condensing）
Power supply DC 12V/1A
Power Consumption <6W
Net Weight <0.4kg



Panel lights and Introduction



Pilot Lamp Status Description
WIFI On The WIFI interface is up.
Blink The WIFI interface is sending or/and receiving data (ACT).
Off The WIFI interface is down.
WPS Blink The WIFI interface is securely establishing a connection.
Off The WIFI interface does not establish a secure connection.
PWR on The device is powered up.
Off The device is powered down.
LOS Blink The device doses not receive optical signals or with low signals.
Off The device has received optical signal.
PON On The device has registered to the PON system.
Blink The device is registering the PON system.
Off The device registration is incorrect.
LAN1~LAN2 On Port is connected properly (LINK).
Blink Port is sending or/and receiving data (ACT).
Off Port connection exception or not connected.
WARN

(CATV)



 On Input optical power is higher than 2dBm or lower than -15dBm
Off Input optical power is between -15dBm and 2dBm
WARN

(CATV)



 On Input optical power is between -15dBm and 2dBm
Off Input optical power is higher than 2dBm or lower than -15dBm
