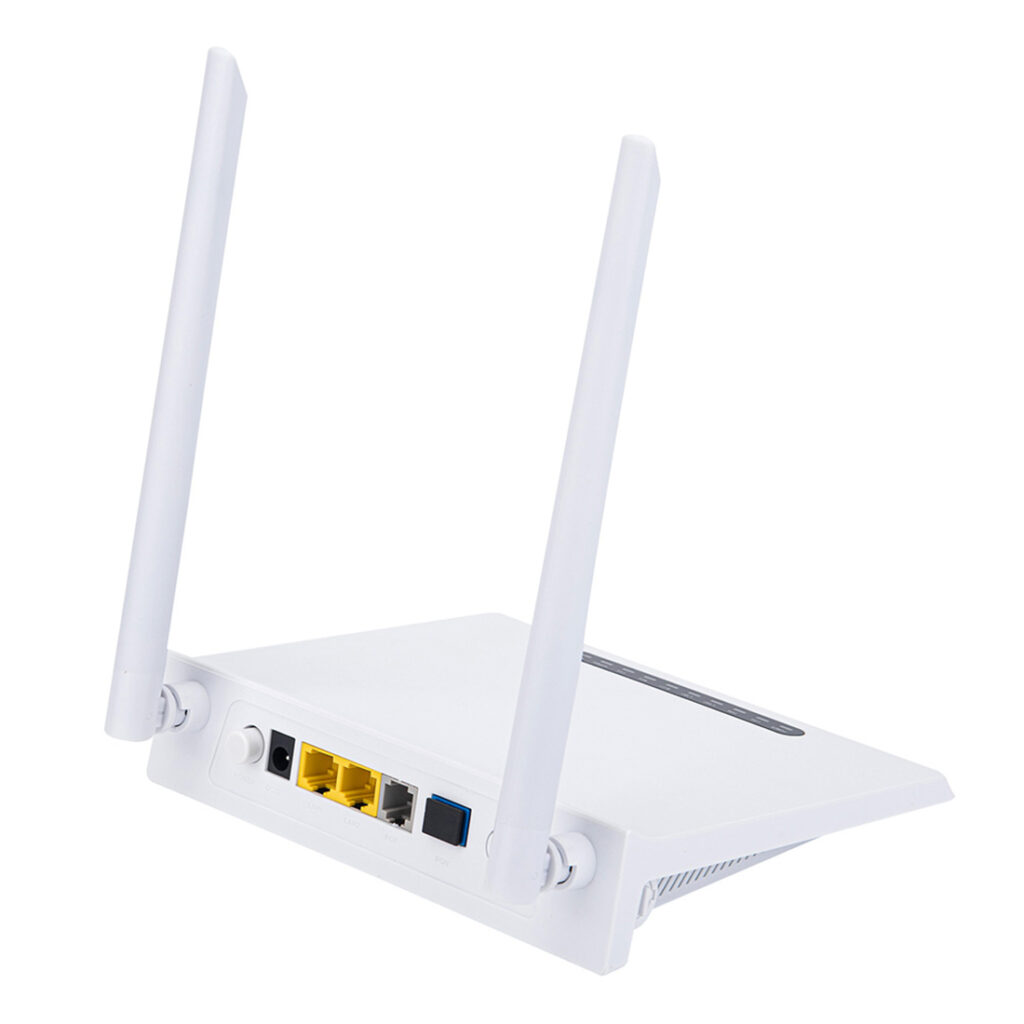

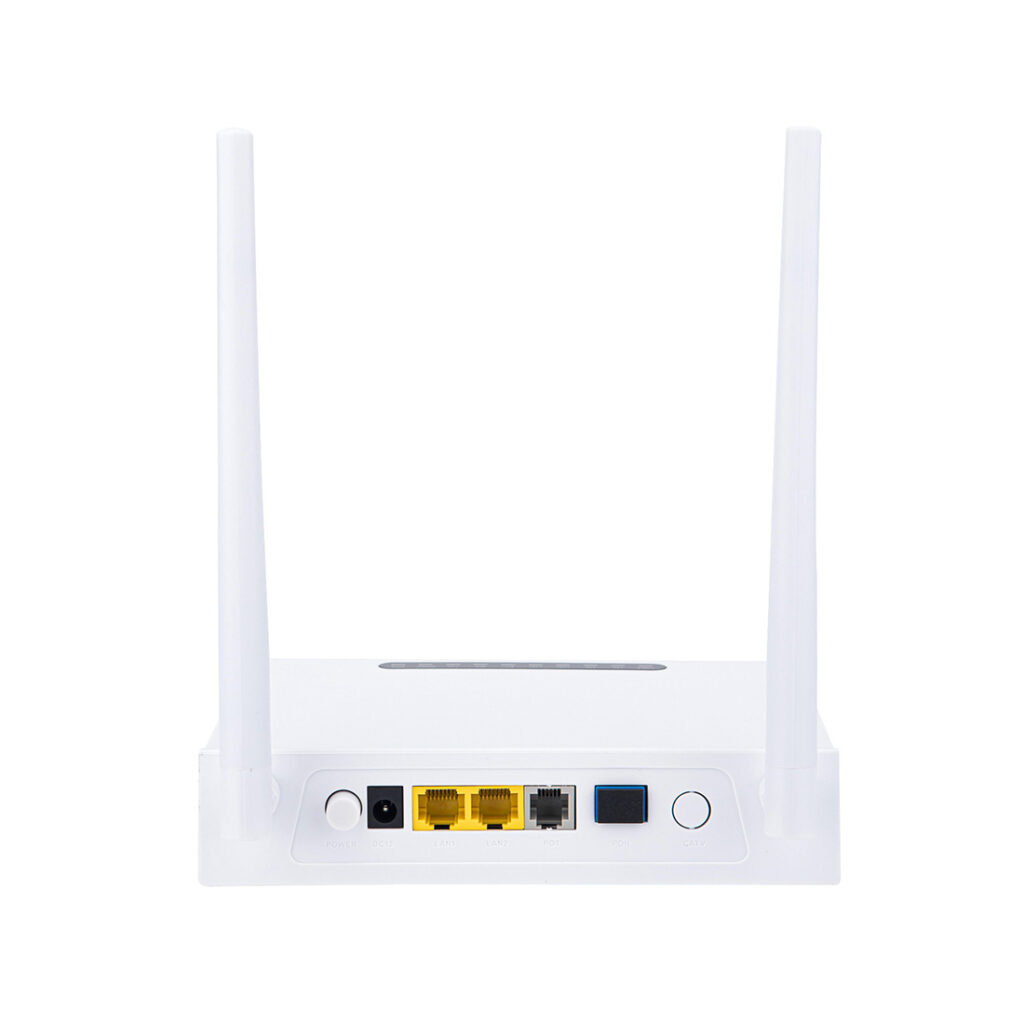

XPON ONU 1GE+1FE+WIFI HY-15-XO1G1FW.
Description
XPON ONU, using Realtek solution RTL9602C+RTL8192 series. With 1Gigabit 1FE WIFI and POTs port, POTs can freely set the operator platform, in line with the dial-up standards of various countries, and perfectly combined with local usage standards. Carrier-grade FTTH application data service access. Comply with the technical requirements of IEEE802.11n, ITU-T G.984.x and IEEE802.3ah, and meet the technical requirements of China Telecom EPON CTC3.0. When connected with EPON OLT or GPON OLT, it can automatically switch to EPON or GPON mode. Using 2×2 MIMO, the maximum rate can reach 300Mbps.
Overview
- 1G1F+WIFI+POTs is designed as HGU (Home Gateway Unit) in transfer data FTTH solutions; the carrier-class FTTH application provides data service access.
- 1G1F+WIFI+POTs is based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT.
- 1G1F+WIFI+POTs adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China telecommunications EPON CTC3.0.
- 1G1F+WIFI+POTs is compliant with IEEE802.11n STD, adopts with 2×2 MIMO, the highest rate up to 300Mbps.
- 1G1F+WIFI+POTs is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.
- 1G1F+WIFI+POTs is designed by Realtek chipset 9602C.
Feature
- Supports Dual Mode (can access GPON/EPON OLT).
- Supports GPON G.984/G.988 standards
- Support SIP Protocol for VoIP Service
- Integrated line testing compliant with GR-909 on POTs
- Support 802.11n WIFI (2×2 MIMO) function
- Support NAT, Firewall function.
- Support Flow & Storm Control , Loop Detection, Port Forwarding and
- Loop-Detect
- Support port mode of VLAN configuration
- Support LAN IP and DHCP Server configuration
- Support TR069 Remote Configuration and WEB Management
- Support Route PPPOE/IPOE/DHCP/Static IP and Bridge mixed mode
- Support IPv4/IPv6 dual stack
- Support IGMP transparent/snooping/proxy
- In compliant with IEEE802.3ah standard
- Compatible with popular OLT(HW, ZTE, FiberHome,VSOL…)
Specification:
| Technical Item
|
Details |
| PON interface
|
1 G/EPON port(EPON PX20+ and GPON Class B+)
Upstream: 1310nm; Downstream: 1490nm SC/APC connector Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM |
| LAN interface | 1×10/100/1000Mbps and 1×10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector |
| WIFI Interface | Compliant with IEEE802.11b/g/n
Operating frequency: 2.400-2.4835GHz support MIMO, rate up to 300Mbps 2T2R,2 external antenna 5dBi Support: Multiple SSID Channel:13 Modulation type: DSSS、CCK and OFDM Encoding scheme: BPSK、QPSK、16QAM and 64QAM |
| LED | 8 LED, For Status of WIFI、WPS、PWR、LOS、PON、LAN1~LAN2、 FXS |
| Push-Button | 4, for Function of Power on/off, Reset, WPS, WIFI |
| Operating condition | Temperature : 0℃～+50℃
Humidity :10%～90%（non-condensing） |
| Storing Condition | Temperature : -40℃～+60℃
Humidity :10%～90%（non-condensing） |
| Power supply | DC 12V/1A |
| Power Consumption | <6W |
| Net Weight | <0.4kg |
Panel lights and Introduction
| Pilot Lamp | Status | Description |
| WIFI | On | The WIFI interface is up. |
| Blink | The WIFI interface is sending or/and receiving data (ACT). | |
| Off | The WIFI interface is down. | |
| WPS | Blink | The WIFI interface is securely establishing a connection. |
| Off | The WIFI interface does not establish a secure connection. | |
| PWR | on | The device is powered up. |
| Off | The device is powered down. | |
| LOS | Blink | The device doses not receive optical signals or with low signals. |
| Off | The device has received optical signal. | |
| PON | On | The device has registered to the PON system. |
| Blink | The device is registering the PON system. | |
| Off | The device registration is incorrect. | |
| LAN1~LAN2 | On | Port (LANx) is connected properly (LINK). |
| Blink | Port is sending or/and receiving data (ACT). | |
| Off | Port (LANx) connection exception or not connected. | |
|
FXS |
On | Telephone has registered to the SIP Server. |
| Blink | Telephone has registered and data transmission (ACT). | |
| Off | Telephone registration is incorrect. |
