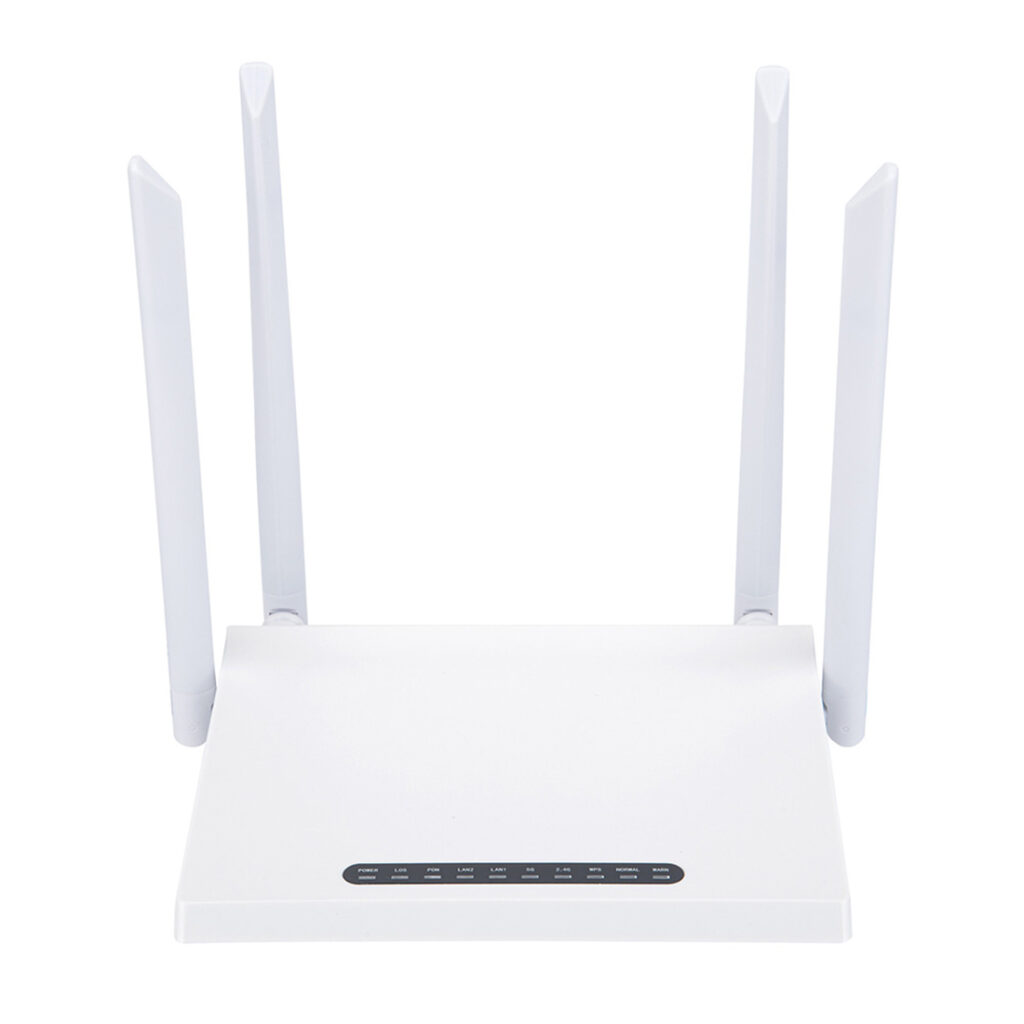

XPON ONU 2GE+2WIFI HY-15-XO2G2W
Description
XPON ONU is designed as 2*Gigabit port dual-band WIFI2.4&5.8G, WIFI2.4 speed can reach 300Mbps, and the average speed can reach 160Mbps. WIFI5.8 rate reaches 1200Mbps. Adopt 802.11n WIFI (4×4 MIMO) function, antenna 5Dbi gain 18Dbi. When connected to EPON OLT or GPON OLT, it can automatically switch between EPON or GPON mode. Support illegal ONT protection, NAT, firewall function, traffic and storm control, etc. The products sold by our company are guaranteed for 1-3 years from the date of sale, and the software can be upgraded for free for life.
Overview
- 2GE+AC WIFI is designed as HGU (Home Gateway Unit) in different FTTH solutions. The carrier-class FTTH application provides data and video service access.
- 2GE+AC WIFI is based on mature and stable, cost-effective XPON technology. It could switch automatically into EPON mode or GPON mode when access to the EPON OLT and GPON OLT.
- 2GE+AC WIFI adopts high reliability, easy management, configuration flexibility and good quality of service guarantees to meet the technical performance of EPON Standard of China telecommunications CTC3.0 and GPON Standard of ITU-TG.984.X
- 2GE+AC WIFI is designed by Realtek chipset 9607C.
Feature
- Supports GPON and EPON auto detection
- Support Rogue ONT detection
- Support Route mode PPPOE/DHCP/Static IP and Bridge mixed mode
- Support NAT, Firewall function.
- Support Internet, IPTV services automatically bound to ONT ports
- Support Virtual server, DMZ, and DDNS, UPNP
- Support Filtering based on MAC/IP/URL
- Support Access Control
- Support 802.11 b/g/n, 802.11ac WIFI(4×4 MIMO) function and Multiple SSID
- Support Flow & Storm Control , Loop Detection and Port Forwarding
- Support IPv4/IPv6 dual stack and DS-Lite
- Support IGMP transparent/snooping/proxy
- Support TR069 Remote Configuration and maintenance
- Integrated OAM remote configuration and maintenance function
- Compatible with popular OLT (HW, ZTE, FiberHome,VSOL…)
Specification:
| Technical Item | Details |
|
PON interface |
1 G/EPON port(EPON PX20+ and GPON Class B+)
Upstream: 1310nm; Downstream: 1490nm SC/UPC connector Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM |
| LAN interface | 2 x 10/100/1000Mbps auto adaptive Ethernet interfaces
Full/Half, RJ45 connector |
|
WIFI Interface |
Compliant with IEEE802.11b/g/n/ac
2.4GHz Operating frequency: 2.400-2.483GHz 5.0GHz Operating frequency: 5.150-5.825GHz Support 4*4MIMO, 5dBi external antenna, rate up to 867Mbps Support: multiple SSID TX power: 11n–22dBm/11ac–24dBm |
| LED | 7 LED, For Status of PWR、LOS、PON、LAN1、LAN2、2.4G、5.8G |
| Push-Button | 3 button for Function of Power on/off, Reset, WPS |
| Operating condition | Temperature : 0℃～+50℃
Humidity :10%～90%（non-condensing） |
| Storing Condition | Temperature : -40℃～+60℃
Humidity :10%～90%（non-condensing） |
| Power supply | DC 12V/1A |
| Power Consumption | <6W |
| Net Weight | <0.3kg |
Panel lights and Introduction
| PilotLamp | Status | Description |
| 2.4G | On | 2.4G WIFI up |
| Blink | 2.4G WIFI is sending or/and receiving data (ACT). | |
| Off | 2.4G WIFI down | |
| 5.8G | On | 5G WIFI up |
| Blink | 5G WIFI is sending or/and receiving data (ACT). | |
| Off | 5G WIFI down | |
| PWR | On | The device is powered up. |
| Off | The device is powered down. | |
| LOS | Blink | The device doses not receive optical signals or with low signals. |
| Off | The device has received optical signal. | |
| PON | On | The device has registered to the PON system. |
| Blink | The device is registering the PON system. | |
| Off | The device registration is incorrect. | |
| LAN1~LAN2 | On | Port (LANx) is connected properly (LINK). |
| Blink | Port (LANx) is sending or/and receiving data (ACT). | |
| Off | Port (LANx) connection exception or not connected. |
