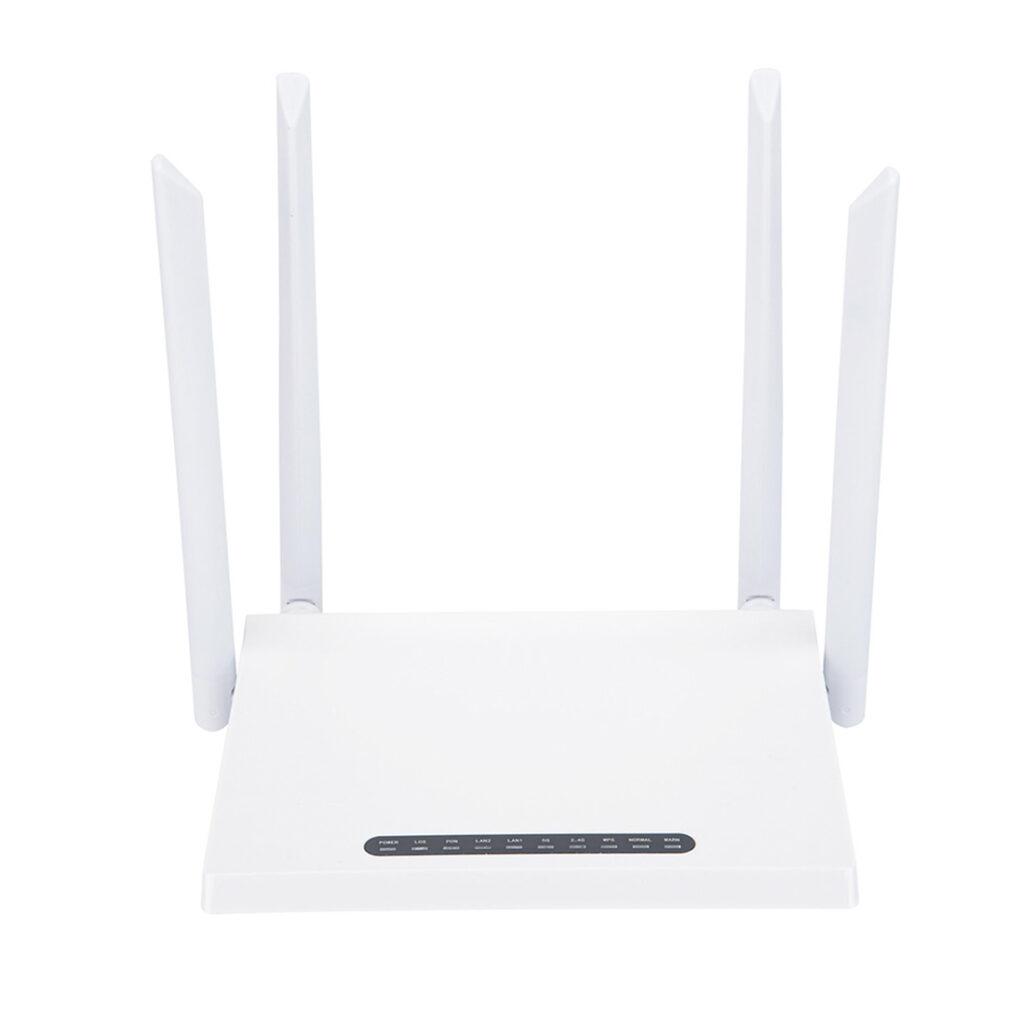

XPON ONU 2GE+CATV+2WIFI HY-15-XO2G1CA2W

Description

 XPON ONU 2*gigabit ports dual-band WIFI2.4&5.8G plus CATV, carrier-grade FTTH applications provide data and video service access. CATV with AGC automatic gain and real RF stable output, WIFI with MESH function, supporting whole-house network networking. Compatible with the OMCI private protocol functions of multi-vendor OLTs, which can be delivered and managed through related OLTs. Support illegal ONT detection, support Internet, IPTV, CATV services automatically bind ONT ports and other functions. Our products are guaranteed for 1-3 years from the date of sale, and the software can be upgraded for free for life.

Overview

  • 2GE+AC WIFI+CATV is designed as HGU (Home Gateway Unit) in different FTTH solutions. The carrier-class FTTH application provides data and video service access.
  • 2GE+AC WIFI+CATV is based on mature and stable, cost-effective XPON technology. It could switch automatically into EPON mode or GPON mode when access to the EPON OLT and GPON OLT.
  • 2GE+AC WIFI+CATV adopts high reliability, easy management, configuration flexibility and good quality of service  guarantees to meet the technical performance of EPON Standard of China telecommunication CTC3.0 and GPON Standard of ITU-TG.984.X
  • 2GE+AC WIFI+CATV is designed by Realtek chipset 9607C.

Feature

  • Supports GPON and EPON auto detection
  • Support Rogue ONT detection
  • Support Route mode PPPOE/DHCP/Static IP and Bridge mixed mode
  • Support NAT, Firewall function.
  • Support Internet, IPTV and CATV services automatically bound to ONT ports
  • Support Virtual server, DMZ, and DDNS, UPNP
  • Support Filtering based on MAC/IP/URL
  • Support 802.11 b/g/n, 802.11ac WIFI(4×4 MIMO) function and Multiple SSID
  • Support Flow & Storm Control , Loop Detection and Port Forwarding
  • Support IPv4/IPv6 dual stack and DS-Lite
  • Support IGMP transparent/snooping/proxy
  • Support TR069 Remote Configuration and maintenance
  • Support CATV remote management from OLT
  • Integrated OAM remote configuration and maintenance function
  • Compatible with popular OLT (HW, ZTE, FiberHome,VSOL…)

Specification:



Technical Item Details
PON interface 1 G/EPON port(EPON PX20+ and GPON Class B+)

Upstream: 1310nm; Downstream: 1490nm

SC/APC connector

Receiving sensitivity: ≤-28dBm

Transmitting optical power: 0~+4dBm

Transmission distance: 20KM
LAN interface 2 x 10/100/1000Mbps auto adaptive Ethernet interfaces, Full/Half, RJ45 connector
WIFI Interface Compliant with IEEE802.11b/g/n/ac

2.4GHz Operating frequency: 2.400-2.483GHz

5.0GHz Operating frequency: 5.150-5.825GHz

Support 4*4MIMO, 5dBi external antenna, rate up to 867Mbps

Support: multiple SSID

TX power: 11n–22dBm/11ac–24dBm
CATV Interface RF, optical power : +2~-15dBm

Optical reflection loss: ≥60dB

Optical receiving wavelength: 1550±10nm

RF frequency range: 47~1000MHz,  RF output impedance: 75Ω

RF output level: ≥ 80dBuV（-7dBm optical input）

AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm

MER: ≥32dB(-14dBm optical input), ＞35(-10dBm)
LED 9 LED, For Status of PWR、LOS、PON、LAN1、LAN2、2.4G、5.8G、

WARN、 Normal(CATV)
Push-Button 3 button for Function of Power on/off, Reset, WPS
Operating condition Temperature : 0℃～+50℃

Humidity :10%～90%（non-condensing）
Storing Condition Temperature : -40℃～+60℃

Humidity :10%～90%（non-condensing）
Power supply DC 12V/1A
Power Consumption <6W
Net Weight <0.3kg

Panel lights and Introduction

Pilot  Lamp Status Description
2.4G On 2.4G WIFI up
Blink 2.4G WIFI is sending or/and receiving data (ACT).
Off 2.4G WIFI down
5.8G On 5G WIFI up
Blink 5G WIFI is sending or/and receiving data (ACT).
Off 5G WIFI down
PWR On The device is powered up.
Off The device is powered down.
LOS Blink The device doses not receive optical signals or with low signals.
Off The device has received optical signal.
PON On The device has registered to the PON system.
Blink The device is registering the PON system.
Off The device registration is incorrect.
LAN1~LAN2 On Port (LANx) is connected properly (LINK).
Blink Port (LANx) is sending or/and receiving data (ACT).
Off Port (LANx) connection exception or not connected.
WARN

(CATV)

 On Input optical power is higher than 2dBm or lower than -18dBm
Off Input optical power is between -18dBm and 2dBm
Normal

(CATV)

 On Input optical power is between -18dBm and 2dBm
Off Input optical power is higher than 2dBm or lower than -18dBm
