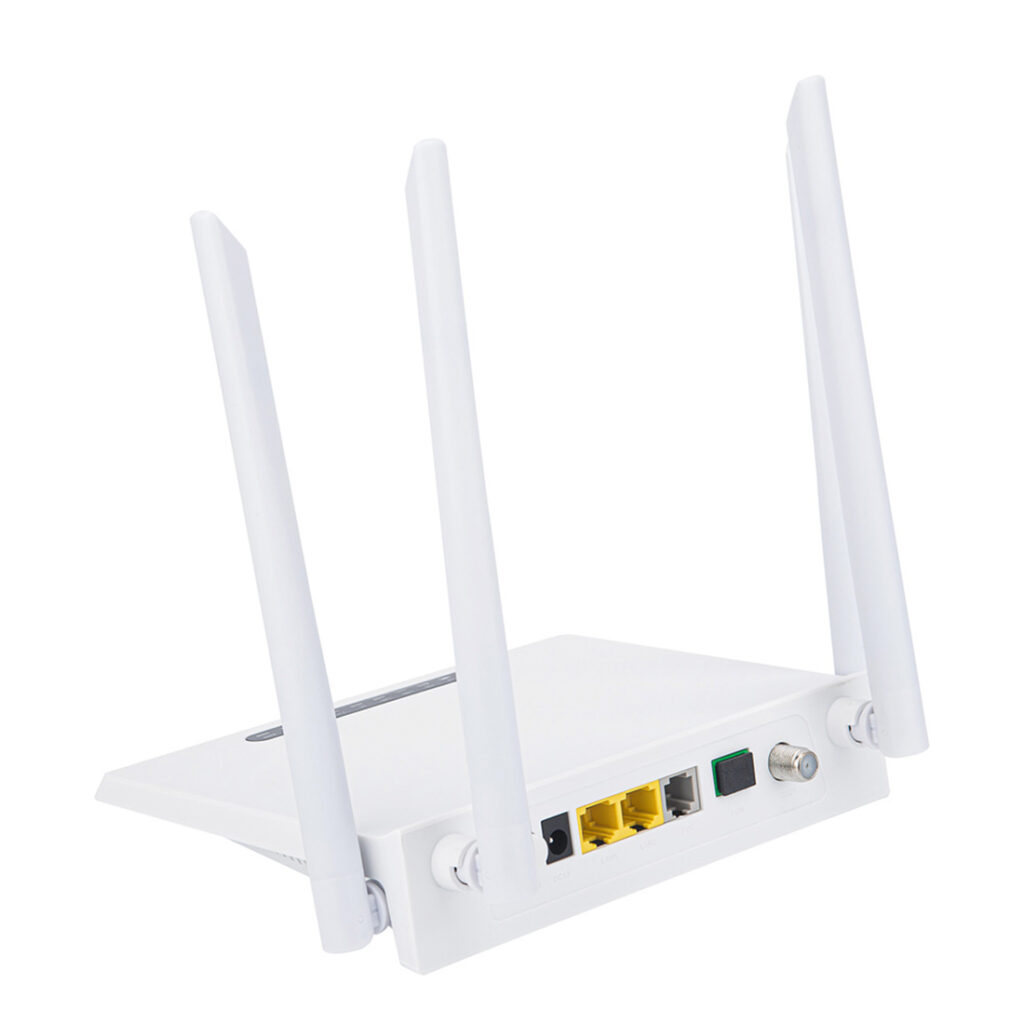

XPON ONU 2GE+CATV+POTs+2WIFI HY-15-XO2G1CAP2W
Description
XPON ONU Gigabit port dual-band WIFI2.4&5.8G*2, 2.4 WIFI maximum rate up to 300Mbps, 5.8 WIFI maximum rate up to 1200Mbps. CATV with AGC automatic gain, can adjust the gain intensity of different optical power, and output RF smoothly to reach video Watch the effects, etc. With POTS port to support GR-909′s VOIP service and SIP protocol for comprehensive line testing. EPON or GPON mode can be switched when connecting EPON OLT or GPON OLT. Products purchased from our company are guaranteed for 1-3 years from the date of sale, and the software can be upgraded for free for life.
Overview
- 2GE+AC WIFI+CATV+POTS is designed as HGU (Home Gateway Unit) in different FTTH solutions. The carrier-class FTTH application provides data and video service access.
- 2GE+AC WIFI+CATV+POTS is based on mature and stable, cost-effective XPON technology. It could switch automatically into EPON mode or GPON mode when access to the EPON OLT and GPON OLT.
- 2GE+AC WIFI+CATV+POTS adopts high reliability, easy management, configuration flexibility and good quality of service guarantees to meet the technical performance of EPON Standard of China telecommunication CTC3.0 and GPON Standard of ITU-TG.984.X
- 2GE+AC WIFI+CATV+POTS is designed by Realtek chipset 9607C.
Feature
- Supports GPON and EPON auto detection
- Support Rogue ONT detection
- Support Route mode PPPOE/DHCP/Static IP and Bridge mixed mode
- Support NAT, Firewall function.
- Support Internet, IPTV and VoIP services automatically bound to ONT ports
- Support Virtual server, DMZ, and DDNS, UPNP
- Support Filtering based on MAC/IP/URL
- Support SIP protocol for VoIP Service
- Support 802.11 b/g/n, 802.11ac WIFI(4×4 MIMO) function and Multiple SSID
- Support Flow & Storm Control , Loop Detection and Port Forwarding
- Support IPv4/IPv6 dual stack and DS-Lite
- Support IGMP transparent/snooping/proxy
- Support TR069 Remote Configuration and maintenance
- Support CATV remote management from OLT
- Integrated OAM remote configuration and maintenance function
Specification:
| Technical Item | Details |
| PON interface | 1 G/EPON port(EPON PX20+ and GPON Class B+)
Upstream: 1310nm; Downstream: 1490nm SC/APC connector Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM |
| LAN interface | 2 x 10/100/1000Mbps auto adaptive Ethernet interfaces, Full/Half, RJ45 connector |
| WIFI Interface | Compliant with IEEE802.11b/g/n/ac
2.4GHz Operating frequency: 2.400-2.483GHz 5.0GHz Operating frequency: 5.150-5.825GHz Support 4*4MIMO, 5dBi external antenna, rate up to 867Gbps Support: multiple SSID TX power: 11n–22dBm/11ac–24dBm |
| CATV Interface | RF, optical power : +2~-18dBm
Optical reflection loss: ≥60dB Optical receiving wavelength: 1550±10nm RF frequency range: 47~1000MHz, RF output impedance: 75Ω RF output level: ≥ 82dBuV（-7dBm optical input） AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm MER: ≥32dB(-14dBm optical input), ＞35(-10dBm) |
| POTS Interface | RJ11
Max 1km distance Balanced Ring, 50V RMS |
| LED | 10 LED, For Status of PWR、LOS、PON、LAN1、LAN2、2.4G、5.8G、
WARN、 Normal(CATV), FXS |
| Push-Button | 3 button for Function of Power on/off, Reset, WPS |
| Operating condition | Temperature : 0℃～+50℃
Humidity :10%～90%（non-condensing） |
| Storing Condition | Temperature : -40℃～+60℃
Humidity :10%～90%（non-condensing） |
| Power supply | DC 12V/1A |
| Power Consumption | <6W |
| Net Weight | <0.3kg |
Panel lights and Introduction
| Pilot Lamp | Status | Description |
| 2.4G | On | 2.4G WIFI up |
| Blink | 2.4G WIFI is sending or/and receiving data (ACT). | |
| Off | 2.4G WIFI down | |
| 5.8G | On | 5G WIFI up |
| Blink | 5G WIFI is sending or/and receiving data (ACT). | |
| Off | 5G WIFI down | |
| PWR | On | The device is powered up. |
| Off | The device is powered down. | |
| LOS | Blink | The device doses not receive optical signals or with low signals. |
| Off | The device has received optical signal. | |
| PON | On | The device has registered to the PON system. |
| Blink | The device is registering the PON system. | |
| Off | The device registration is incorrect. | |
| LAN1~LAN2 | On | Port (LANx) is connected properly (LINK). |
| Blink | Port (LANx) is sending or/and receiving data (ACT). | |
| Off | Port (LANx) connection exception or not connected. | |
| FXS | On | Telephone has registered to the SIP Server. |
| Blink | Telephone has registered and data transmission (ACT). | |
| Off | Telephone registration is incorrect. | |
| WARN
(CATV) |
On | Input optical power is higher than 2dBm or lower than -18dBm |
| Off | Input optical power is between -18dBm and 2dBm | |
| Normal
(CATV) |
On | Input optical power is between -18dBm and 2dBm |
| Off | Input optical power is higher than 2dBm or lower than -18dBm |
